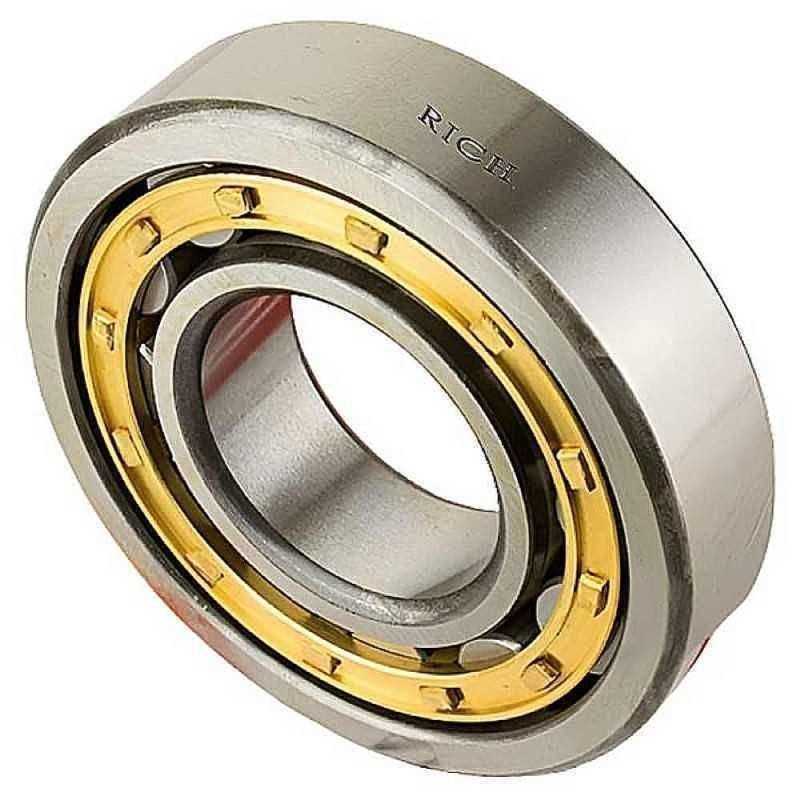

NJ 2317 EM RICH Cylindrical Roller Bearing - 85 x 180 x 60 mm
Technical Specifications:
- Catalog Code: NJ 2317 EM RICH
- Brand: RICH
- Type: Single row cylindrical roller bearing (NJ Design)
- Dimensions: 85 x 180 x 60 mm
- Inner Diameter (d): 85 mm
- Outer Diameter (D): 180 mm
- Width (B): 60 mm
- Execution: Reinforced (E)
- Cage Material: Machined Brass (M)
- Cage Guidance: Rolling elements
- Weight: 7.254 kg
- Country of Origin: China
Key Performance Advantages:
- NJ Design Configuration: Features two integral flanges on the outer ring and one on the inner ring, allowing for axial shaft location in one direction.
- Reinforced Execution (E): Optimized internal design with increased roller size and quantity for maximum radial load capacity.
- Heavy-Duty Brass Cage (M): Machined brass construction provides high durability and stability under severe vibration or high-speed conditions.
- Enhanced Width Profile: The 60 mm width belonging to the 23 series ensures superior stiffness and high resistance to radial forces.
Transparency Note: This product is manufactured under the RICH brand. The code NJ 2317 EM is used for identification purposes and does not imply affiliation with other manufacturers.
