RP 1563 RICH 35,5x58,3x30,75 RP1563 RICH
search
  • RP 1563 RICH 35,5x58,3x30,75 RP1563 RICH

RP 1563 RICH 35,5x58,3x30,75

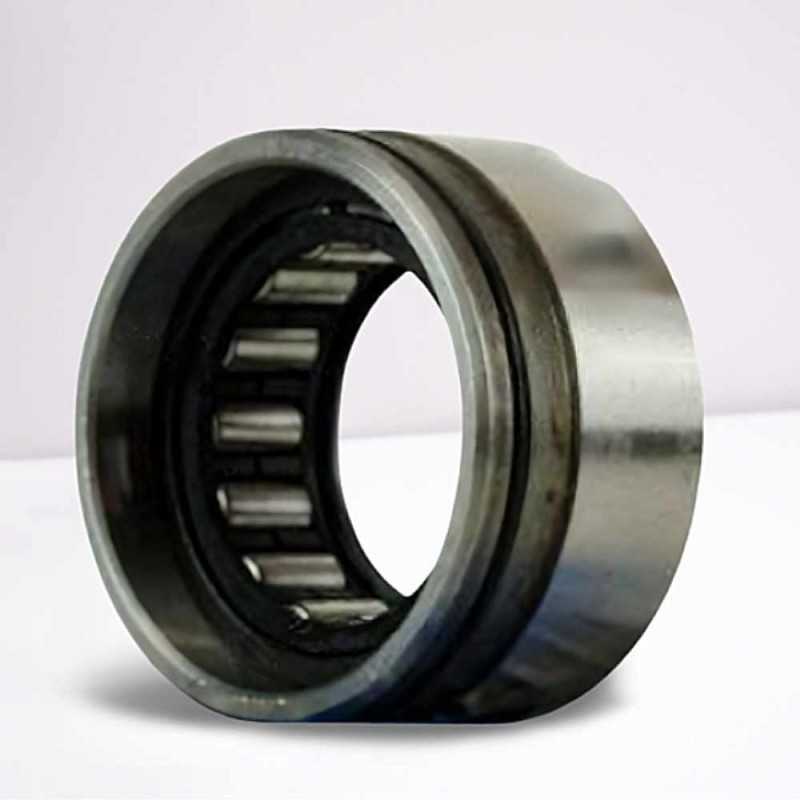

RP 1563 RICH Single Row Cylindrical Roller Bearing without Inner Ring. Dimensions 35.5 x 58.3 x 30.75 mm with a polyamide cage for high-speed operation.

RICH
RP1563
€11.82
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

RP 1563 RICH Single Row Cylindrical Roller Bearing without Inner Ring - Polyamide Cage - 35.5 x 58.3 x 30.75 mm

Technical Specifications:

  • Product Type: Single Row Cylindrical Roller Bearing
  • Interchange:TRP1563TAV Timken
  • Model Designation: RP 1563
  • Brand: RICH
  • Feature: Cylindrical Roller Bearing without an Inner Ring
  • Bore Diameter (d): 35.5 mm
  • Outer Diameter (D): 58.3 mm
  • Width (B): 30.75 mm
  • Cage Type: Polyamide
  • Weight: 0.25 kg
  • Country of Origin: China

The RP 1563 RICH is a specialized single row cylindrical roller bearing manufactured by RICH, designed for use where the shaft itself can serve as the inner raceway. Classified as a cylindrical roller bearing without an inner ring, this configuration allows for a compact radial design and enables the use of a larger shaft diameter relative to the bearing's outer diameter. Its dimensions are approximately 35.5 mm bore (raceway diameter), 58.3 mm outer diameter, and 30.75 mm width. The bearing features a durable polyamide cage, which offers low friction, quiet operation, and low weight, making it suitable for applications requiring high speeds and operational stability. This type of bearing is used for high radial load capacity applications where minimal axial displacement is necessary.

Key Performance Advantages:

  • High Radial Load Capacity: Cylindrical roller design efficiently supports heavy radial loads.
  • Space-Saving Design: Absence of an inner ring provides a compact cross-section.
  • Polyamide Cage: Ensures low friction, reduced noise, and smooth operation at high speeds.
  • RICH Quality: Provides a rigid and reliable solution for industrial power transmission systems.

Data sheet

Inner Diameter
35,5
Outer Diameter
58,3
Width
30,75
Cage
Polyamide Cage
Category
Single Row Cylindrical Roller Bearing
