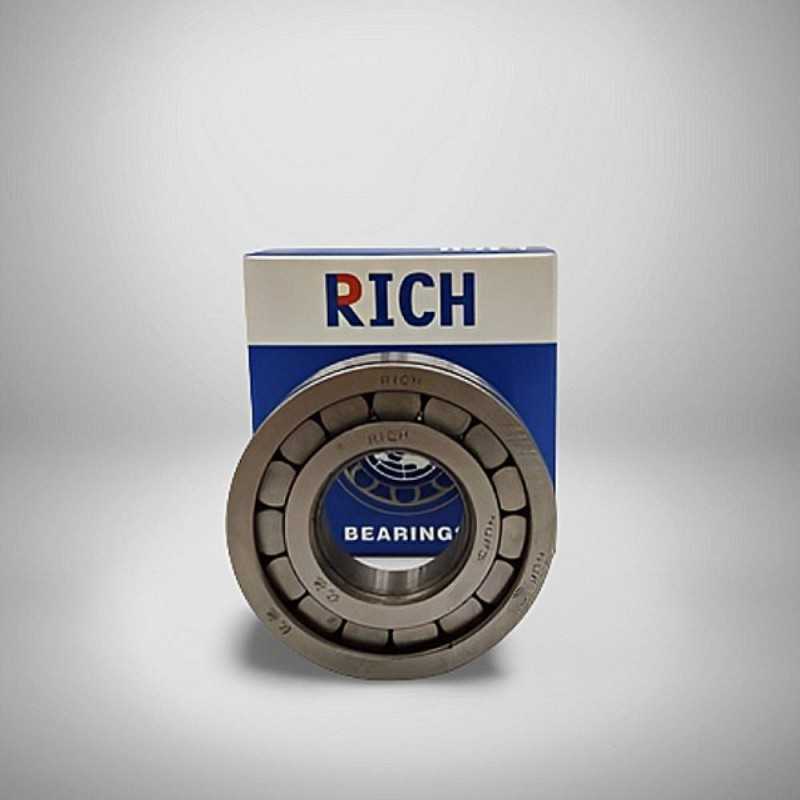

NUP 211 RICH 55x100x21
Rating:
(0)
EUR €
- EUR €
- USD $
NUP211 RICH Single Row Cylindrical Roller Bearing - 55 x 100 x 21 mm
The NUP211 RICH is a single row cylindrical roller bearing designed for applications requiring high radial load capacity and the ability to accommodate axial displacement in one direction, as well as support axial loads in that direction. This bearing has key dimensions of 55 mm inner diameter, 100 mm outer diameter, and a width of 21 mm. It features a steel cage and weighs 0.694 kg. The NUP designation signifies that the outer ring has two fixed ribs, while the inner ring has one fixed rib and one loose rib. This design allows for axial movement of the shaft relative to the housing within specific limits. This particular RICH bearing is made in China.
Key Specifications:
- Bearing Type: Single Row Cylindrical Roller Bearing
- Model:** NUP211 RICH
- Inner Diameter (d):** 55 mm
- Outer Diameter (D):** 100 mm
- Width (B):** 21 mm
- Cage Material:** Steel
- Weight:** 0.694 kg
- Country of Origin:** China
Key Features:
- Cylindrical Roller Design:** Provides very high radial load capacity.
- NUP Design:** Outer ring with two fixed ribs, inner ring with one fixed and one loose rib, enabling axial displacement in one direction and axial load support.
- Steel Cage:** Ensures excellent strength and precise roller guidance.
- Separable Components:** The inner ring assembly and outer ring can be mounted independently, simplifying installation and maintenance.
- Versatile Application:** Ideally suited for demanding applications in machine tools, gearboxes, electric motors, pumps, and various other industrial machinery where high radial loads and axial movement are present.
- Manufacturing Origin:** Made in China.
Data sheet
Inner Diameter
55
Outer Diameter
100
Width
21
Weight
0,694
Roller Rows
Single Row
Cage
Steel Cage
Category
Single Row Cylindrical Roller Bearing
