NUP 2213 EM C3 XLZ 65x120x31 NUP2213EMC3 RICH

NUP 2213 EM C3 XLZ 65x120x31

Type: Single Row Cylindrical Roller Bearing (NUP)
Model: NUP 2213 EM C3 RICH
Dimensions: 65 x 120 x 31 mm
Cage: Machined Brass (EM)
Clearance: C3 (Greater than normal)
Brand: RICH
Origin: China
RICH
NUP2213EMC3
€15.84
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

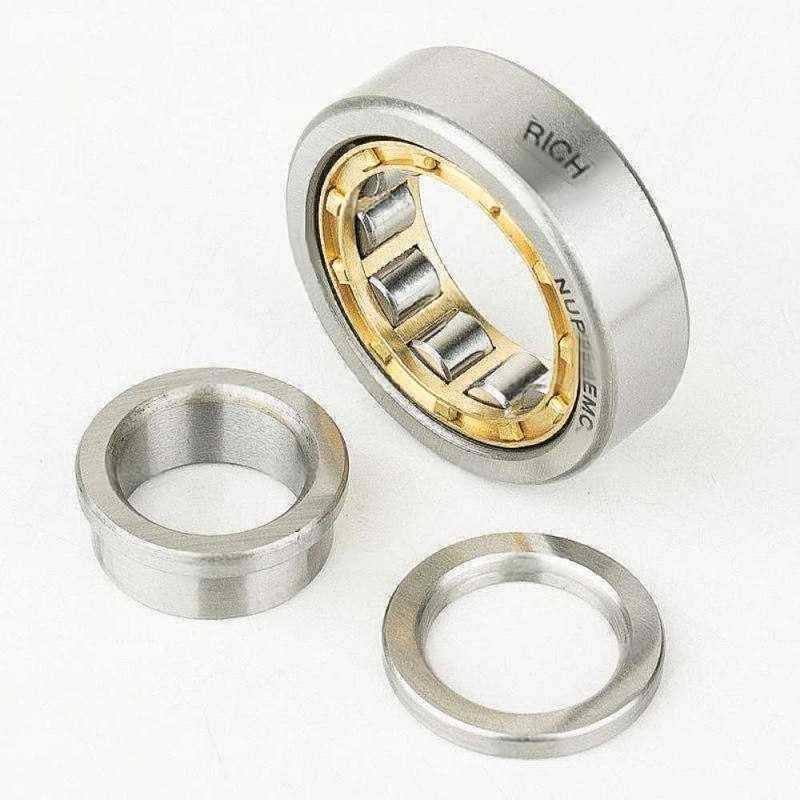

NUP 2213 EM C3 RICH Single Row Cylindrical Roller Bearing - 65 x 120 x 31 mm

Technical Specifications:

  • Catalog Code: NUP 2213 EM C3 RICH
  • Brand: RICH
  • Type: Single row cylindrical roller bearing (NUP design)
  • Bore Diameter (d): 65 mm
  • Outer Diameter (D): 120 mm
  • Width (B): 31 mm
  • Clearance: C3 (Greater than normal)
  • Cage: Machined brass, rolling element guided (EM)
  • Execution: Reinforced (E)
  • Weight: 1.45 kg
  • Country of Origin: China

Product Overview:

The NUP 2213 EM C3 RICH is a heavy-duty single row cylindrical roller bearing engineered for maximum radial load capacity and high-speed stability. As a NUP-type bearing, it features two integral flanges on the outer ring and one fixed flange plus a loose flange ring on the inner ring, allowing for axial displacement of the shaft in both directions while providing precise location. This model is built with a reinforced "E" execution and a premium machined brass cage, which offers superior durability and heat resistance compared to standard steel or polyamide cages. The C3 internal clearance ensures the bearing operates efficiently under high thermal loads, preventing seizure caused by shaft expansion in demanding industrial gearboxes and electric motors.

Key Performance Advantages:

  • High Radial Load Capacity: Reinforced execution (E) provides a larger roller set for intense industrial forces.
  • Machined Brass Cage: Offers excellent frictional properties and strength for high-vibration or high-speed applications.
  • NUP Design Flexibility: Facilitates axial location of the shaft while simplifying mounting and dismounting procedures.
  • C3 Clearance Optimization: Designed for heavy-duty cycles where thermal expansion is a critical operational factor.

Transparency Note: This bearing is manufactured under the RICH brand. The code NUP 2213 EM C3 is used solely for identification and does not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
65
Outer Diameter
120
Width
31
Cage
Brass
Clearance
C3 (Greater than Normal)
Category
Single Row Cylindrical Roller Bearing
