• New
SL045013 PP 2NR RICH 65x100x46 SL045013PP2NR RICH
search
  • SL045013 PP 2NR RICH 65x100x46 SL045013PP2NR RICH

SL045013 PP 2NR RICH 65x100x46

Type: Double Row Full Complement Bearing
Model: SL045013.PP.2NR RICH
Dimensions: 65 x 100 x 46 mm
Features: Sealed (PP) with 2 Snap Ring Grooves (2NR)
Brand: RICH
Origin: China
RICH
SL045013PP2NR
€30.58
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

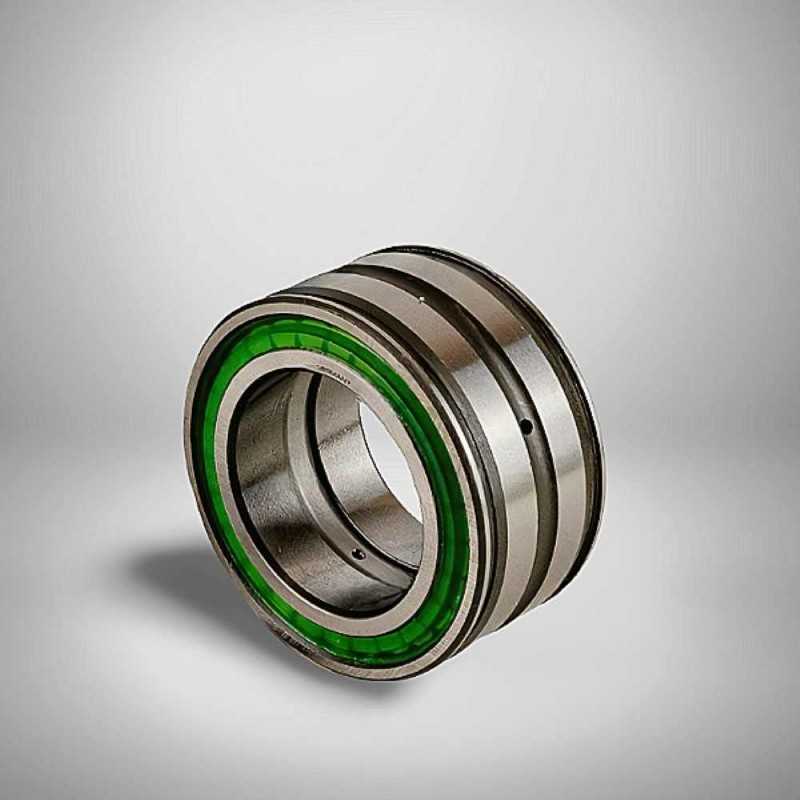

SL045013 PP 2NR RICH Double Row Cylindrical Roller Bearing - 65 x 100 x 46 mm

Technical Specifications:

  • Catalog Code: SL045013.PP.2NR RICH
  • Brand: RICH
  • Type: Double row cylindrical roller bearing (Full Complement)
  • Bore Diameter (d): 65 mm
  • Outer Diameter (D): 100 mm
  • Width (B): 46 mm
  • Cage: None (Full complement)
  • Sealing: Double-sided rubber contact seal (PP)
  • Grooves: Two snap ring grooves on the outer ring (2NR)
  • Weight: 1.293 kg
  • Country of Origin: China

Key Performance Advantages:

  • Maximum Radial Load Capacity: By utilizing two rows of rollers in a full complement (cageless) design, the SL045013.PP.2NR RICH maximizes the internal contact area. This allows it to support extreme radial forces in heavy lifting applications.
  • Secure Axial Location (2NR): The presence of two grooves on the outer ring enables the use of snap rings for simple and secure axial positioning. This is particularly beneficial for rope sheaves where the bearing must be locked in place.
  • Effective Environmental Protection: The integrated contact rubber seals (PP) on both sides protect the internal rolling elements from moisture and abrasive dust, which is essential for outdoor construction and mining equipment.
  • High System Rigidity: The 46 mm width and double-row configuration provide exceptional stability against tilting moments, ensuring smooth cable movement and reduced wear on the pulley system.
  • Ready-to-Mount Solution: This bearing is supplied pre-greased and sealed, providing a high-reliability component that simplifies the assembly process for industrial winches and cranes.

Transparency Note: This product is manufactured under the RICH brand. The code SL045013.PP.2NR is used for identification purposes.

Data sheet

Inner Diameter
65
Outer Diameter
100
Width
46
Weight
1,256
Roller Rows
Double Row
Clearance
CN (Normal)
Category
Double Row Cylindrical Roller Bearing
