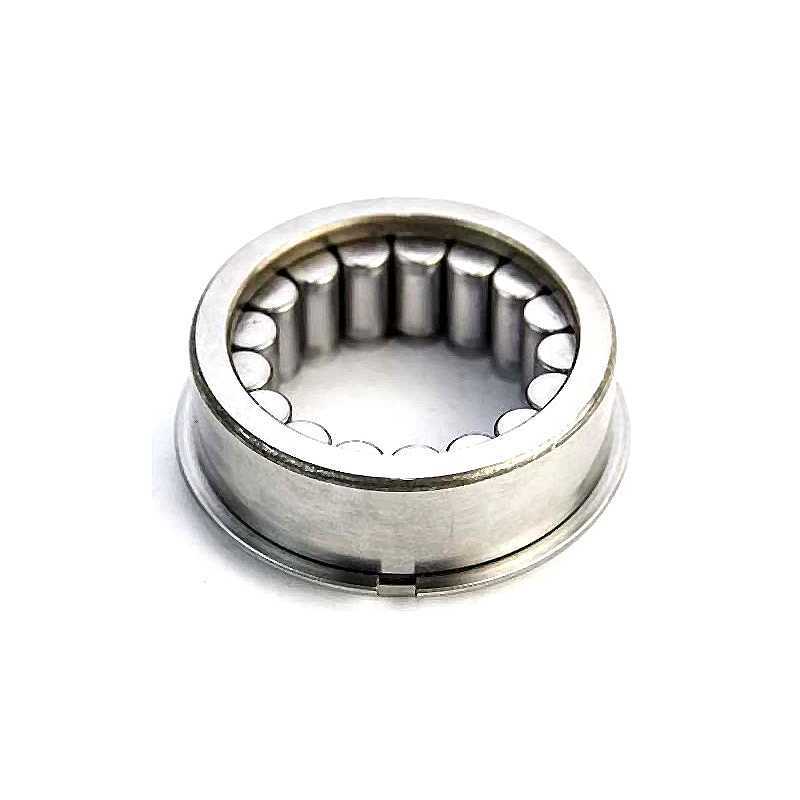

RNU 080623 NR RICH Cylindrical Roller Bearing without Inner Ring – 37 × 60 × 23 mm
OE Reference: 90365-37002 TOYOTA
Interchange: 37RUKS60CL2NRC3 NACHI
RNU 080623 NR RICH is a single row cylindrical roller bearing without an inner ring. Dimensional and structural characteristics correspond to the 37 × 60 × 23 mm specification, featuring a snap ring groove on the outer ring for axial location. The shaft surface functions as the inner raceway.
Technical Specifications:
- Brand: RICH
- Type: Cylindrical roller bearing without an inner ring
- Model: RNU 080623 NR RICH
- Outer Diameter (D): 60 mm
- Inner Diameter under rollers (Fw): 37 mm
- Width (C): 23 mm
- Cage Material: Steel
- Outer Ring Feature: Groove with snap ring
- Weight: 0.251 kg
- Country of Origin: China
Performance Characteristics:
- Load Profile: Radial load arrangement
- Structural Design: RNU type (without inner ring)
- Mounting Layout: Outer ring groove for snap ring axial retention
- Material Type: High‑carbon chrome bearing steel
- Application Interface: Transmission and differential assembly interfaces
RICH-manufactured component. Dimensional references are used for identification only and do not imply OEM affiliation. Country of origin: China.
