RTF-J33 G5 C3 RICH 33x60x21

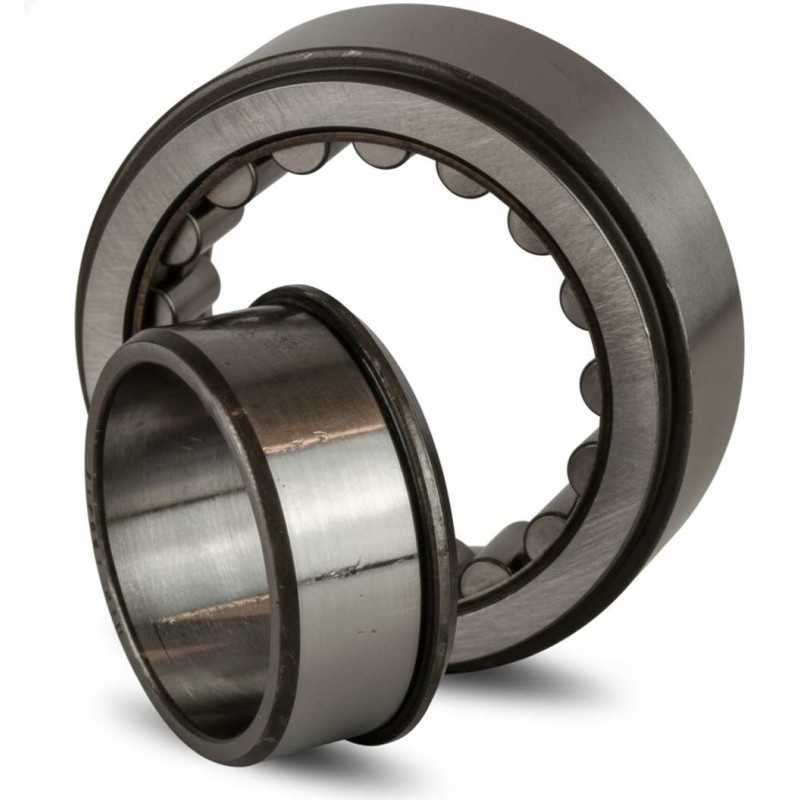

RTF-J33 G5 C3 RICH – Single Row Cylindrical Roller Bearing – 33 x 60 x 21 mm

OE Reference:

• TOYOTA: 9036533006
• TOYOTA: 9008037017

Interchange:

• NSK: HTF J33-1G5C3 SA01

Technical Specifications:

• Type: Single row cylindrical roller bearing
• Brand: RICH
• Model Designation: RTF-J33 G5 C3
• Inner Diameter (d): 33 mm
• Outer Diameter (D): 60 mm
• Total Width (B): 21 mm
• Inner Ring Width: 17.5 mm
• Outer Ring Width (C): 20.5 mm
• Internal Clearance: C3 (Greater than normal)
• Cage Material: Steel
• Weight: 0.246 kg
• Country of Origin: China

Performance Characteristics:

• Structural Configuration: Single row cylindrical roller bearing designed for high radial load capacity in automotive applications.
• Thermal Management: C3 internal clearance specified to maintain operational functionality during thermal expansion and high-speed rotation.
• Component Geometry: Features an asymmetrical ring width design with a 17.5 mm inner ring and 20.5 mm outer ring.
• Mechanical Interface: 33 x 60 x 21 mm dimensional format produced for compatibility with Toyota original equipment and NSK HTF series.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
