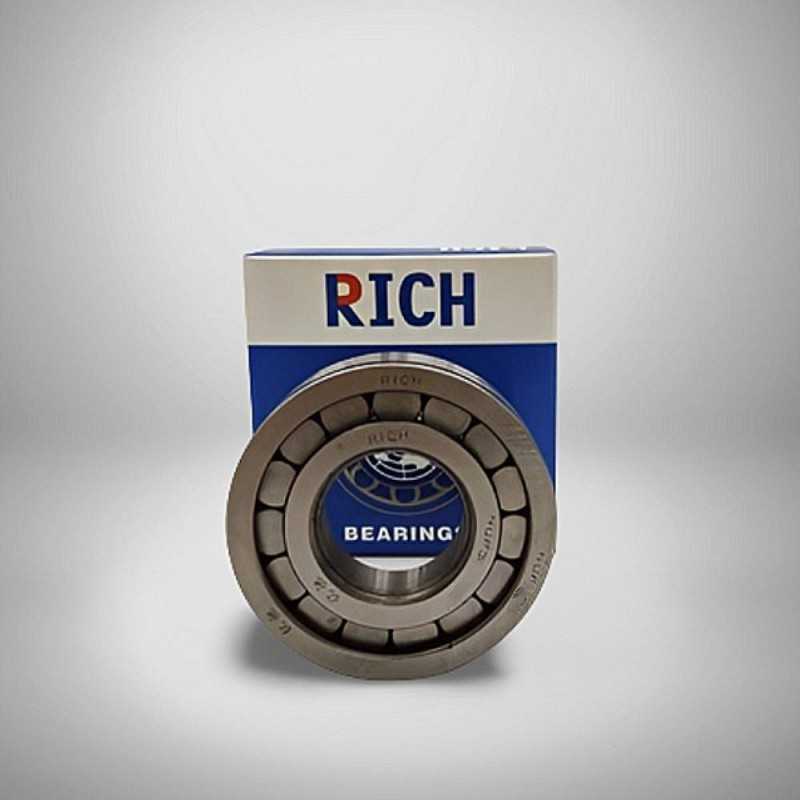

NUP313 RICH Single Row Cylindrical Roller Bearing - 65 x 140 x 33 mm

The NUP313 RICH is a single row cylindrical roller bearing designed to accommodate high radial loads. This bearing has key dimensions of 65 mm inner diameter, 140 mm outer diameter, and a width of 33 mm. It features a steel cage and weighs 2.51 kg. It is made in China. This type of bearing has cylindrical rollers in linear contact with the raceways, providing a high radial load capacity. The NUP design indicates that the outer ring has two integral flanges and a non-integral flange (loose rib), allowing for axial displacement in both directions within certain limits.

Key Specifications:

  • Bearing Type: Single Row Cylindrical Roller Bearing
  • Model:** NUP313 RICH
  • Inner Diameter (d):** 65 mm
  • Outer Diameter (D):** 140 mm
  • Width (B):** 33 mm
  • Cage Material:** Steel
  • Country of Origin:** China

Key Features:

  • Cylindrical Roller Design:** Optimized for high radial loads.
  • NUP Design:** Outer ring with two integral flanges and one loose rib, allowing for axial displacement.
  • Steel Cage:** Provides high strength and durability.
  • Robust Construction:** Capable of withstanding significant radial forces.
  • Versatile Application:** Suitable for various industrial applications.
  • Manufacturing Origin:** Made in China.

Data sheet

Inner Diameter
65
Outer Diameter
140
Width
33
Roller Rows
Single Row
Cage
Steel Cage
Category
Single Row Cylindrical Roller Bearing
