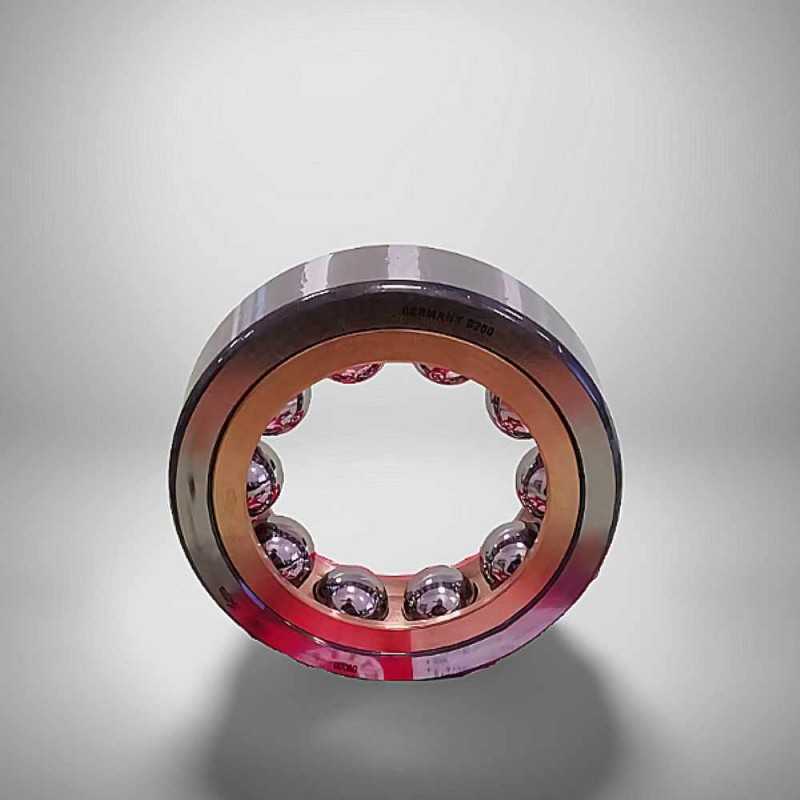

QJ308-M RICH 40x90x23 QJ308-M
zoom_out_map
QJ308-M RICH 40x90x23 QJ308-M

QJ308-M RICH 40x90x23

Designed for exceptional performance, the QJ308-M RICH four point contact bearing handles heavy axial loads and can operate at high speeds in a single, compact design.

QJ308-M
€22.14
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

QJ308-M RICH Four Point Contact Bearing - 40 x 90 x 23 mm

Technical Specifications:

  • Bearing Type: Four Point Contact Ball Bearing
  • Model Designation: QJ308-M
  • Brand: RICH
  • Dimensions: 40 x 90 x 23 mm
  • Inner Diameter (d): 40 mm
  • Outer Diameter (D): 90 mm
  • Width (B): 23 mm
  • Cage: Brass, guided on the outer ring (M)
  • Clearance: CN (normal)
  • Weight: 0.764 kg

The QJ308-M RICH is a specialized four point contact ball bearing engineered to support significant axial loads in both directions. Its unique design allows for high-speed operation while requiring minimal radial space, making it a compact and effective solution. This bearing features a high-strength brass cage (M designation) that is expertly guided on the outer ring, ensuring smooth and reliable performance. With precise dimensions of 40 mm inner diameter, 90 mm outer diameter, and a width of 23 mm, this bearing is built for demanding applications. Weighing 0.764 kg with a CN (normal) clearance, the RICH QJ308-M offers a versatile and durable solution for a wide range of industrial uses.

Key Performance Advantages:

  • High Axial Load Capacity: Designed to handle heavy axial loads in both directions.
  • Space-Saving Design: Provides a compact solution while maintaining high performance.
  • Durable Brass Cage: Offers excellent strength and is guided for stable, reliable operation.
  • Versatile Application: Ideal for applications requiring high speed and substantial axial support.
  • RICH Quality: A reliable and robust component for a wide range of uses.

Data sheet

Inner Diameter
40
Outer Diameter
90
Width
23
Weight
0,764
Ball Rows
Single Row
Cage
Brass
