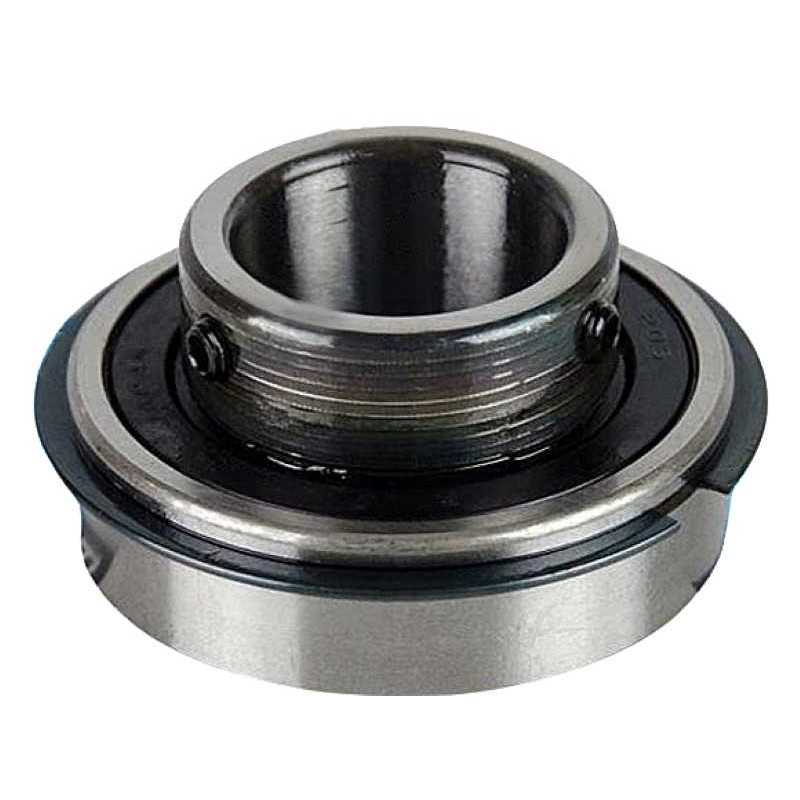

CSB 205-2RS-N RICH 25x52x27

CSB 205-2RS-N RICH | Ball Bearing with Flat Outer Ring – 25 x 52 x 27 mm

Technical Specifications:

• Catalog Code: CSB 205-2RS-N RICH
• Brand: RICH
• Bearing Type: Ball Bearing with Flat Outer Ring
• Inner Diameter (d): 25 mm
• Outer Diameter (D): 52 mm
• Total Width (T): 27 mm
• Inner Ring Width: 27 mm
• Outer Ring Width (C): 15 mm (insert bearing)
• Outer Ring Profile: Cylindrical (not rounded)
• Groove on Outer Ring: Yes
• Weight: 0.175 kg
• Cage: Steel
• Sealing: Double-sided lip seal covered with a plate (2RS)
• Country of Origin: China

Key Performance Advantages:

• Flat Outer Ring: Cylindrical profile for secure seating in housings.
• Snap Ring Groove (N): Facilitates axial location in the housing.
• Double Lip Seals (2RS): Covered with a plate for enhanced protection against contaminants and grease retention.
• Steel Cage: Provides durability and stability under demanding operating conditions.
• Optimized Dimensions: 25 mm bore, 52 mm outer diameter, 27 mm total width.
• Insert Bearing Execution: Outer ring width 15 mm, designed for mounting in flat housings.
• RICH Quality: Precision manufactured for reliability and consistent performance.

Transparency Note: This ball bearing with flat outer ring is manufactured directly under the RICH brand. The catalog code CSB 205-2RS-N is used solely for identification and does not imply affiliation with other brands. The product is clearly marked with its actual brand and origin.
