5491 RICH 12,7x28,57x11

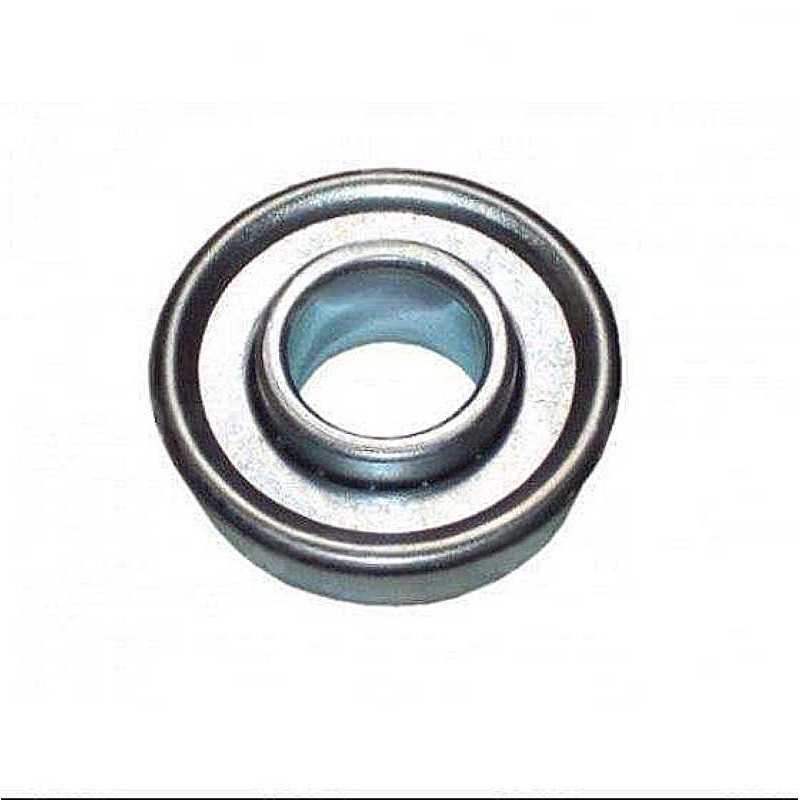

5491 RICH Flanged Deep Groove Ball Bearing – 12.7 × 28.57 × 11 mm

Technical Specifications:

• Brand: RICH
• Type: Flanged deep groove ball bearing
• Model: 5491 RICH
• Inner Diameter (d): 12.7 mm
• Outer Diameter (D): 28.57 mm
• Inner Ring Width (B): 11 mm
• Outer Ring Width (C): 9.6 mm
• Flange Diameter (D1): 31.9 mm
• Weight: 0.03 kg
• Country of Origin: China

Performance Characteristics:

• Load Profile: Radial and axial load support
• Flange Design: Integrated outer ring flange for axial location and housing mounting
• Raceway Geometry: Deep groove track for high-speed stability
• Material Type: High-carbon chrome bearing steel
• Assembly Interface: Simplified mounting in through-bored housings

5491 RICH is a flanged deep groove ball bearing designed for axial positioning within the housing. Dimensional and structural characteristics correspond to the 12.7 × 28.57 × 11 mm specification.

Transparency Note: This component is manufactured under the RICH brand. Dimensions and references are used for identification and do not imply affiliation with the original equipment manufacturer.
