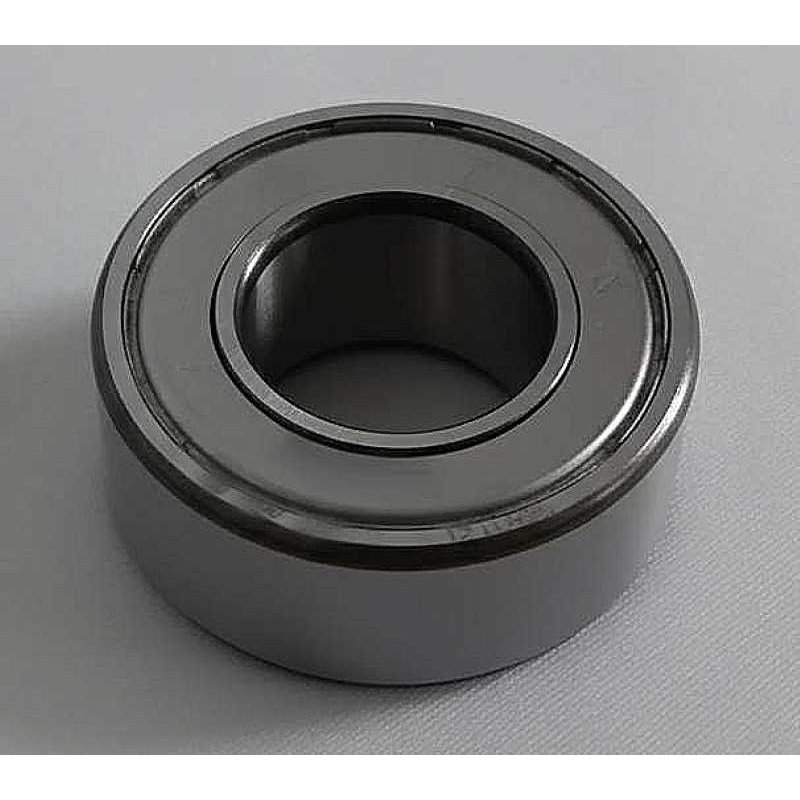

39 KTT RICH | Single Row Deep Groove Ball Bearing 9 x 26 x 14.27 mm
Technical Specifications:
- Product Type: Single Row Deep Groove Ball Bearing
- Model Designation: 39 KTT
- Brand: RICH
- Bore Diameter (d): 9 mm
- Outer Diameter (D): 26 mm
- Width (B): 14.27 mm
- Sealing: KTT (Triple-lip seals with external metal shields on both sides)
- Cage Material: Steel
- Weight: 0.036 kg
- Country of Origin: China
The 39 KTT RICH is a specialized single row deep groove ball bearing engineered for maximum protection in the most demanding environments. Featuring dimensions of 9 x 26 x 14.27 mm, this bearing is characterized by its unique sealing system, which makes it significantly wider than standard series bearings of a similar bore diameter. It is designed to provide high radial load support for small-diameter shafts operating under extreme contamination levels.
The standout feature of the 39 KTT is the KTT triple-lip sealing system. Each side of the bearing is protected by a multi-barrier rubber seal covered by a robust metal plate (shroud). This configuration is specifically developed for applications exposed to heavy dust, mud, water, and abrasive particles. While the triple-lip design is optimized for low-to-moderate rotational speeds due to the high contact friction, it offers an unsurpassed level of security for the internal raceways and lubricant.
Manufactured to professional standards, the 39 KTT RICH ensures long-term operational reliability in agricultural and industrial machinery where standard seals would fail prematurely due to environmental ingress.
Key Performance Advantages:
- Triple-Lip Sealing (KTT): Provides three distinct contact surfaces to block the ingress of liquid and solid contaminants.
- Metal Plate Shrouds: Offers secondary mechanical protection against larger debris and prevents seal damage.
- Heavy Contamination Resistance: Specifically designed for equipment operating in soil, mud, or high-moisture areas.
- Extended Maintenance Intervals: Superior grease retention and contamination exclusion reduce the need for frequent replacement.
- RICH Precision Standards: Built with high-grade steel to ensure consistent performance under load.
Typical Applications:
- Agricultural machinery (Seeder units, harrow discs, and harvesting equipment).
- Outdoor power equipment and lawn-care machinery.
- Conveyor systems in dusty or abrasive environments (Mining/Construction).
- Small industrial drives operating in wash-down or high-debris areas.
Transparency Note: This product is manufactured under the RICH brand. All dimensions, model references, and technical data are provided strictly for identification and compatibility purposes and do not imply affiliation, authorization, or endorsement by the referenced manufacturers.
