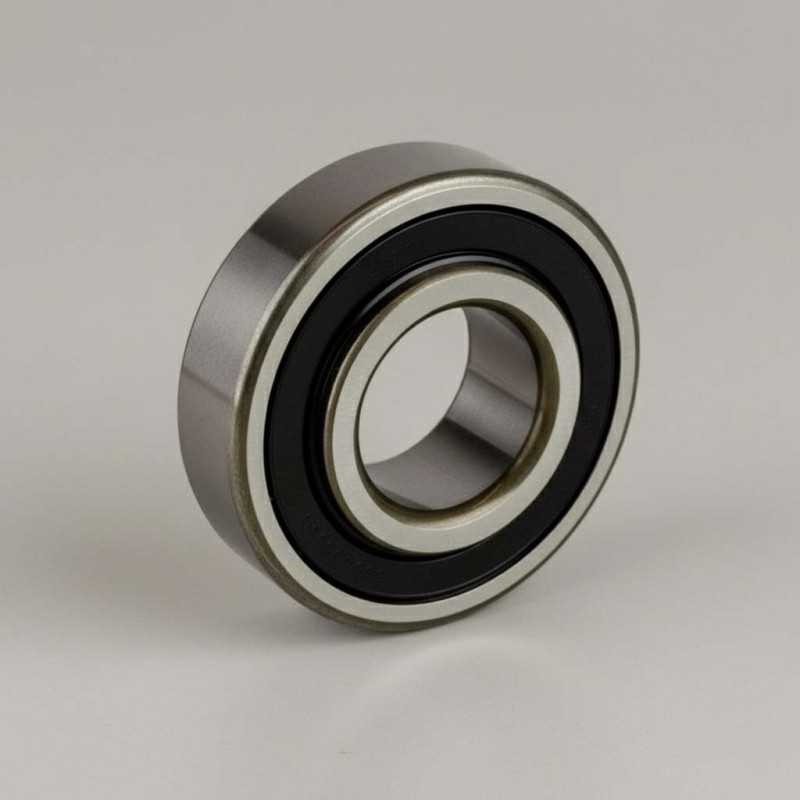

35BCD08S6 C3 RICH Single Row Deep Groove Ball Bearing – 35 × 80 × 28 mm
The 35BCD08S6 C3 RICH is a single row deep groove ball bearing. Its dimensional and structural parameters correspond to the 35 × 80 × 28 mm format, with an asymmetric ring configuration that includes an outer ring width of 21 mm and a C3 radial internal clearance classification.
Technical Specifications:
- Brand: RICH
- Type: Single row deep groove ball bearing
- Model: 35BCD08S6 C3 RICH
- Inner Diameter (d): 35 mm
- Outer Diameter (D): 80 mm
- Inner Ring Width (B): 28 mm
- Outer Ring Width (C): 21 mm
- Internal Clearance: C3
- Sealing: Double-sided rubber contact seals
- Weight: 0.53 kg
- Country of Origin: China
Performance Characteristics:
- Load Profile: Radial and axial load arrangement
- Thermal Classification: C3 clearance for temperature-related dimensional variation
- Structural Layout: Asymmetric ring width for defined housing interfaces
- Material Type: High‑carbon chrome bearing steel
- Application Interface: Transmission and drivetrain assembly interfaces
Transparency Note: This bearing is manufactured under the RICH brand. Model codes, OE references, and interchange numbers are provided solely for identification purposes and do not imply affiliation with the original equipment manufacturers or other brands. The product is clearly marked with its actual brand and origin (Made in China).
