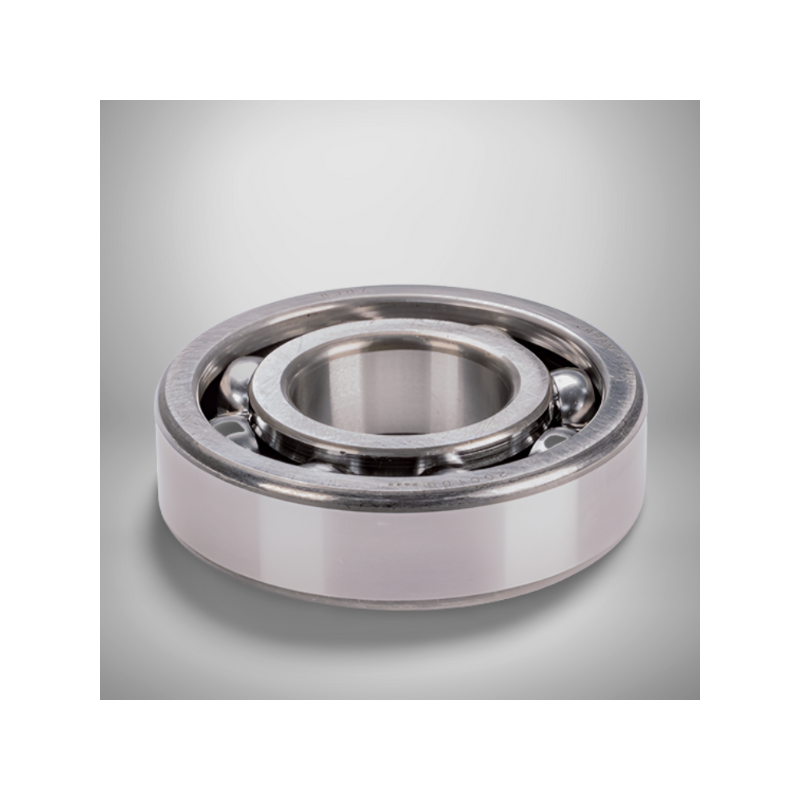

RMS9 RICH Single Row Deep Groove Ball Bearing - 28.57 x 71.43 x 20.627 mm, Open Type, Normal Clearance

The RMS9 RICH is an open-type single row deep groove ball bearing designed for applications requiring smooth and efficient rotation. It has key dimensions of 28.57 mm inner diameter, 71.43 mm outer diameter, and a width of 20.627 mm. This bearing weighs approximately 0.193 kg. It features a steel cage and has CN (normal) clearance. It is made in China and does not have any seals, making it suitable for applications where external lubrication or no sealing is required. Single row deep groove ball bearings can accommodate radial and axial loads in both directions.

Known OE References: 899377M2 MASSEY FERGUSON

Key Specifications:

  • Type:** Single Row Deep Groove Ball Bearing
  • Model:** RMS9 RICH
  • Inner Diameter (d): 28.57 mm (1.125 inches)
  • Outer Diameter (D): 71.43 mm (2.8125 inches)
  • Width (B): 20.627 mm (0.8121 inches)
  • Cage Material:** Steel
  • Clearance:** CN (Normal)
  • Sealing:** None (Open)
  • Weight:** 0.193 kg
  • Country of Origin:** China
  • Known OE References:** 899377M2 MASSEY FERGUSON

Key Features:

  • Deep Groove Geometry:** Suitable for moderate radial and axial loads in both directions.
  • Steel Cage:** Offers high strength and durability.
  • Open Type (No Seals): Allows for relubrication and high-speed operation.
  • Normal Clearance (CN): Standard radial internal clearance.
  • Imperial Dimensions:** Common in certain applications and industries.
  • Manufacturing Origin:** Made in China.
  • Cross-Reference Information:** Includes relevant original equipment (OE) part numbers.

Data sheet

Inner Diameter
28,57
Outer Diameter
71,43
Width
20.627
Weight
0,193
Ball Rows
Single Row
Cage
Steel Cage
Clearance
CN (Normal)
Category
Single Row Deep Groove Ball Bearing
