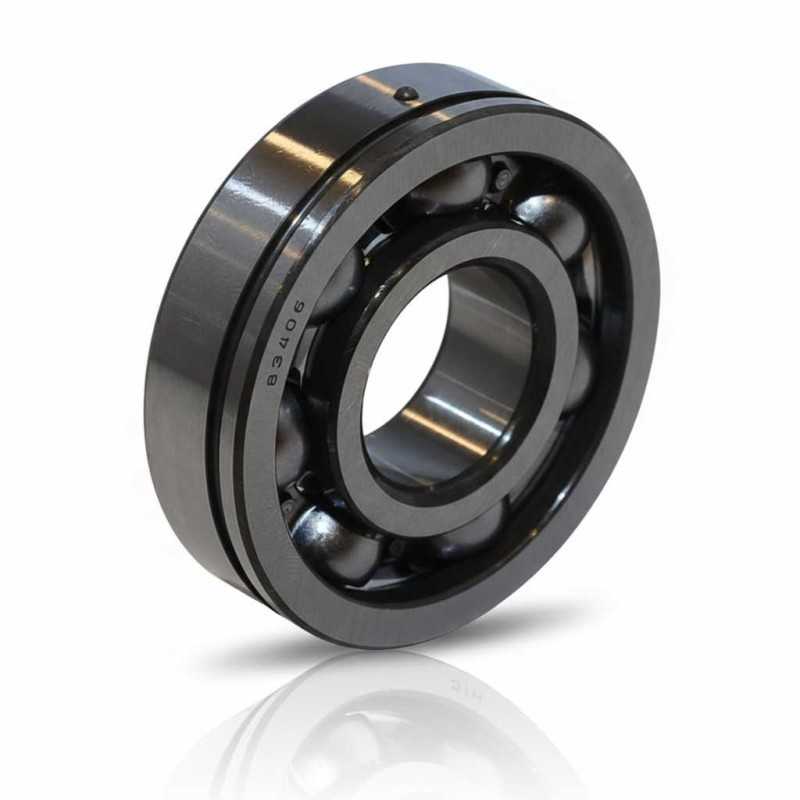

83406-9 C3 RICH 25x62x17 83406-9-C3 RICH
zoom_out_map
83406-9 C3 RICH 25x62x17 83406-9-C3 RICH

83406-9 C3 RICH 25x62x17

Type: Single Row Deep Groove Ball Bearing
Model: RICH 83406-9 C3
Dimensions: 25 x 62 x 17 mm
Brand: RICH
Origin: China
RICH
83406-9-C3
€10.82
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

83406-9 C3 RICH Single Row Deep Groove Ball Bearing – 25 × 62 × 17 mm

Oe References:

  • YAMAHA: 9330630508

Technical Specifications:

  • Brand: RICH
  • Type: Single row deep groove ball bearing
  • Model: 83406-9 C3 RICH
  • Inner Diameter (d): 25 mm
  • Outer Diameter (D): 62 mm
  • Width (B): 17 mm
  • Radial Clearance: C3 (Greater than Normal)
  • Cage Material: Steel
  • Sealing: None (Open)
  • Feature: Groove on outer ring
  • Weight: 0.231 kg
  • Country of Origin: China

Performance Characteristics:

  • Structural Layout: Single row radial assembly with an integrated groove on the outer ring for axial location.
  • Internal Geometry: Deep groove design with C3 internal clearance, optimized for high-speed operation and thermal expansion management.
  • Material Type: High‑carbon chrome bearing steel for enhanced durability.
  • Dimensional Format: 25 × 62 × 17 mm configuration.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
25
Outer Diameter
62
Width
17
Weight
0,231
Ball Rows
Single Row
Clearance
C3 (Greater than Normal)
Category
Single Row Deep Groove Ball Bearing
