SC04B05 RS RICH 20x56x20 TMSC04B05LUACS23PX1 RICH
zoom_out_map
SC04B05 RS RICH 20x56x20 TMSC04B05LUACS23PX1 RICH

SC04B05 RS RICH 20x56x20

Type: Single Row Deep Groove Ball Bearing
Model: RICH SC04B05 RS
Dimensions: 20 x 56 x 20 mm
Brand: RICH
Origin: China
RICH
TMSC04B05LUACS23PX1
€16.92
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

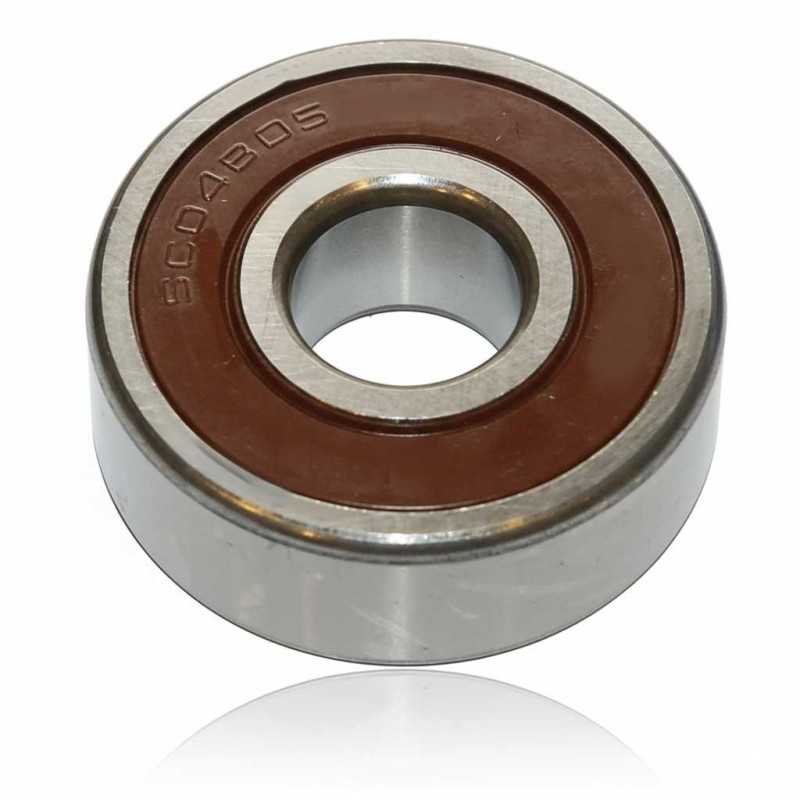

SC04B05 RS RICH Single Row Deep Groove Ball Bearing – 20 × 56 × 20 mm

OE References:

  • MERCEDES: 0069812325, 0059817925, 0069814025, 0079812125

Interchange:

  • NTN: TM-SC04B05LUACS23PX1

Technical Specifications:

  • Brand: RICH
  • Type: Single row deep groove ball bearing
  • Model: SC04B05 RS RICH
  • Inner Diameter (d): 20 mm
  • Outer Diameter (D): 56 mm
  • Width (B): 20 mm
  • Cage Material: Polyamide
  • Sealing: One-sided plastic contact seal (RS)
  • Weight: 0.207 kg
  • Country of Origin: China

Performance Characteristics:

  • Structural Layout: Radial deep groove ball bearing engineered for high-precision automotive drivetrain applications.
  • Internal Geometry: Optimized raceway design to facilitate both radial and specific axial load requirements.
  • Material Type: High-carbon steel rings combined with a lightweight polyamide cage for reduced friction and quiet operation.
  • Sealing System: Single-sided plastic contact seal designed to protect the internal elements from localized contaminants while maintaining lubrication.
  • Dimensional Format: 20 × 56 × 20 mm configuration specialized for Mercedes-Benz transmission units.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
20
Outer Diameter
56
Width
20
Weight
0,207
Ball Rows
Single Row
Sealing
Contact Seal On One Side
Category
Single Row Deep Groove Ball Bearing
