TMB203AJR2C3 RICH 17x40x12 TMB203AJR2C3/3AS RICH
zoom_out_map
TMB203AJR2C3 RICH 17x40x12 TMB203AJR2C3/3AS RICH

TMB203AJR2C3 RICH 17x40x12

Type: Single Row Deep Groove Ball Bearing
Model: RICH TMB203AJR2C3
Dimensions: 17 x 40 x 12 mm
Brand: RICH
Origin: China
RICH
TMB203AJR2C3/3AS
€6.88
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

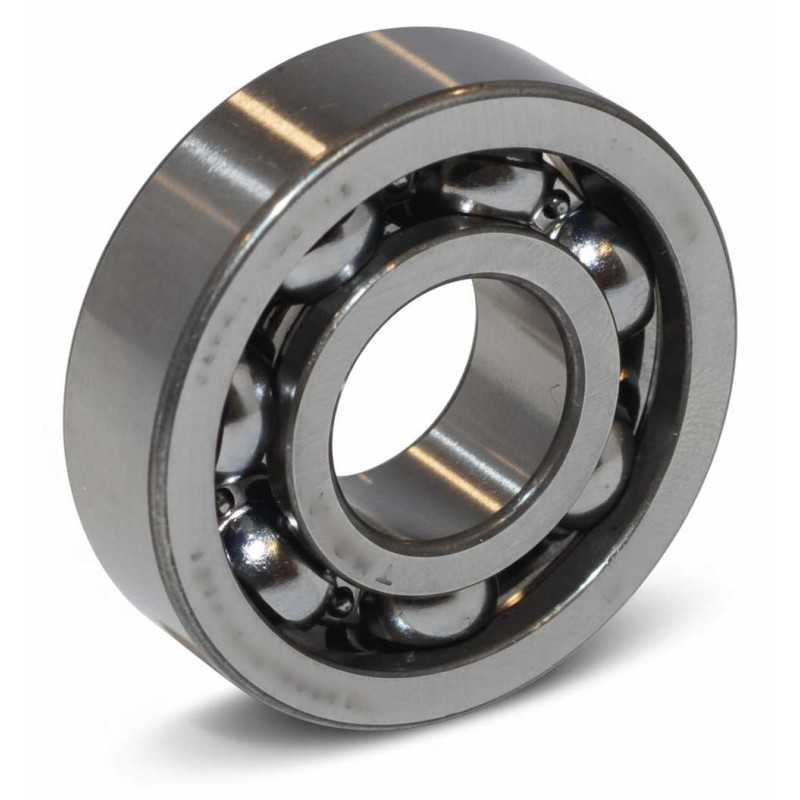

TMB203AJR2C3 RICH Single Row Deep Groove Ball Bearing – 17 × 40 × 12 mm

OE References:

  • HONDA: 91004-GCC-771, 91004-GCC-000

Technical Specifications:

  • Brand: RICH
  • Type: Single row deep groove ball bearing
  • Model: TMB203AJR2C3 RICH
  • Inner Diameter (d): 17 mm
  • Outer Diameter (D): 40 mm
  • Width (B): 12 mm
  • Cage Material: Steel
  • Clearance: C3 (Greater than normal radial clearance)
  • Sealing: None (Open)
  • Weight: 0.07 kg
  • Country of Origin: China

Performance Characteristics:

  • Structural Layout: Reinforced TMB-type single row ball bearing designed for increased service life under heavy radial loads.
  • Internal Geometry: Optimized raceway design with C3 clearance to accommodate thermal expansion and high-speed operation.
  • Material Type: High-carbon chromium steel rings and rolling elements.
  • Dimensional Format: 17 × 40 × 12 mm configuration.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
17
Outer Diameter
40
Width
12
Weight
0,07
Ball Rows
Single Row
Cage
Steel Cage
Clearance
C3 (Greater than Normal)
Category
Single Row Deep Groove Ball Bearing
