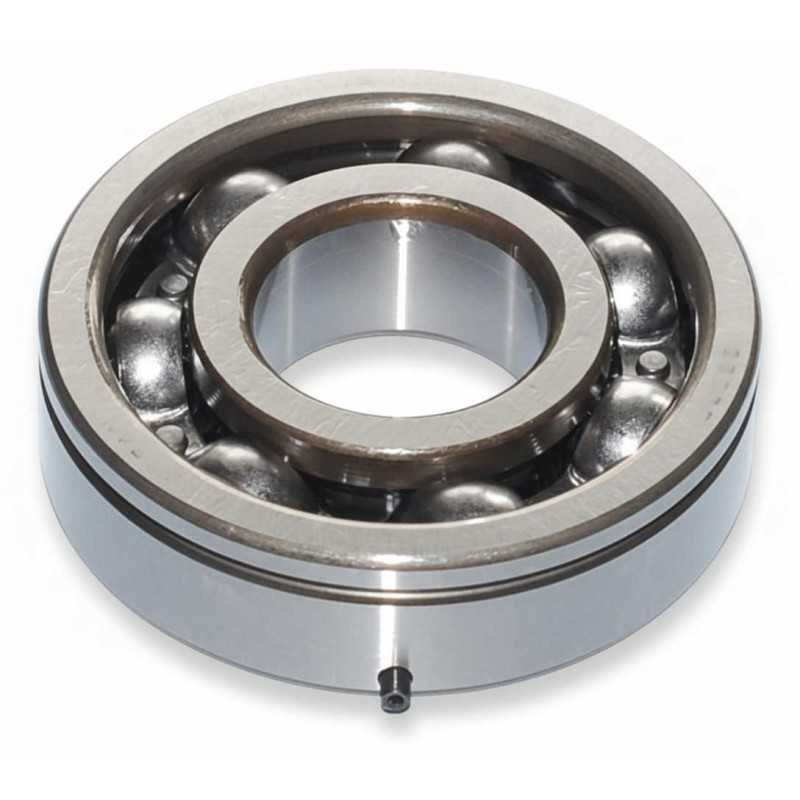

83580-9 C3 RICH 25x62x17 83580-9C3 RICH
zoom_out_map
83580-9 C3 RICH 25x62x17 83580-9C3 RICH

83580-9 C3 RICH 25x62x17

Type: Single Row Deep Groove Ball Bearing
Model: 83580-9 C3 RICH
Dimensions: 25 x 62 x 17 mm
Brand: RICH
Origin: China
RICH
83580-9C3
€6.92
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

83580-9 C3 RICH Single Row Deep Groove Ball Bearing – 25 × 62 × 17 mm

OE References:

  • YAMAHA 9330630532

Technical Specifications:

  • Type: Single row deep groove ball bearing
  • Brand: RICH
  • Model Designation: 83580-9 C3 RICH
  • Inner Diameter (d): 25 mm
  • Outer Diameter (D): 62 mm
  • Width (B): 17 mm
  • Clearance: C3 (Greater than normal radial clearance)
  • Weight: 0.23 kg
  • Sealing: None (Open bearing)
  • Country of Origin: China

Performance Characteristics:

  • Structural Layout: Single row radial ball bearing.
  • Internal Geometry: Deep groove raceways suitable for combined radial and axial load distribution.
  • Material Composition: High-carbon chromium steel rings and rolling elements.
  • Lubrication: Open configuration without integrated sealing elements.
  • Dimensional Format: 25 × 62 × 17 mm configuration with C3 radial clearance.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
25
Outer Diameter
62
Width
17
Weight
0,23
Ball Rows
Single Row
Sealing
Open
Cage
Steel Cage
Clearance
C3 (Greater than Normal)
Category
Single Row Deep Groove Ball Bearing
