V2-6308/32 NR C3 RICH 32x90x23 V26308/32S1NRC3DLM-R RICH
zoom_out_map
V2-6308/32 NR C3 RICH 32x90x23 V26308/32S1NRC3DLM-R RICH

V2-6308/32 NR C3 RICH 32x90x23

Type: Single Row Deep Groove Ball Bearing
Model: V2-6308/32 NR C3 RICH
Dimensions: 32 x 90 x 23 mm
Features: 2RS Seals, Snap Ring (NR), C3 Clearance
Brand: RICH
Origin: China
RICH
V26308/32S1NRC3DLM-R
€29.15
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

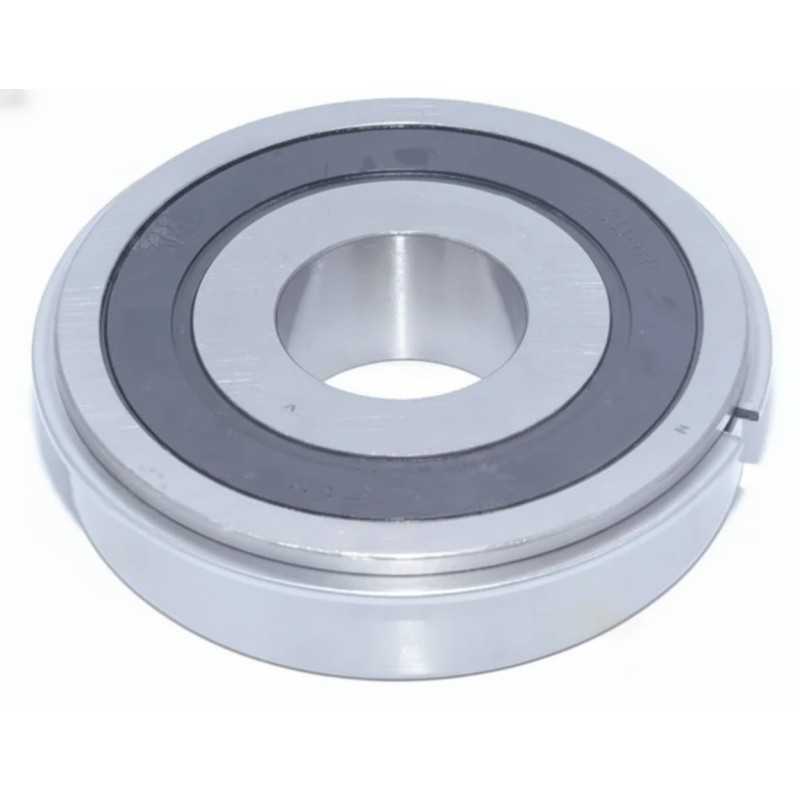

V2-6308/32 NR C3 RICH – Single Row Deep Groove Ball Bearing – 32 x 90 x 23 mm

Technical Specifications:

  • Type: Single row deep groove ball bearing
  • Brand: RICH
  • Model Designation: V2-6308/32 NR C3
  • Inner Diameter (d): 32 mm
  • Outer Diameter (D): 90 mm
  • Width (B): 23 mm
  • Sealing: 2RS (Rubber seals on both sides)
  • Feature: NR (Snap ring groove and snap ring included)
  • Internal Clearance: C3 (Greater than Normal)
  • Weight: 0.7 kg
  • Country of Origin: China

Performance Characteristics:

  • Structural Design: Deep groove ball bearing featuring a snap ring (NR) for secure axial location within the housing.
  • Sealing System: Equipped with 2RS contact seals to prevent lubricant leakage and protect against dust and moisture.
  • Thermal Stability: C3 internal clearance allows for thermal expansion during high-speed or high-temperature operation without compromising performance.
  • Load Management: Optimized for radial and axial loads in both directions with a specialized 32 mm bore for custom mechanical fitments.

Transparency Note:

This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
32
Outer Diameter
90
Width
23
Weight
0,7
Ball Rows
Single Row
Sealing
Lip Seal On Both Sides
Cage
Steel Cage
Clearance
C3 (Greater than Normal)
Category
Single Row Deep Groove Ball Bearing
