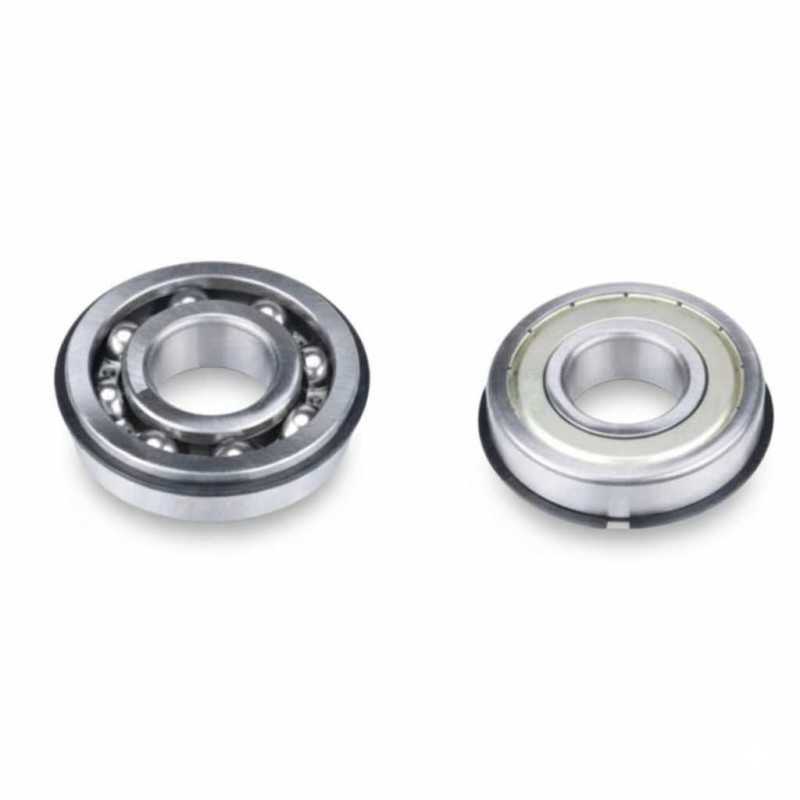

6207 Z NR RICH 35x72x17

6207ZNR RICH – Single Row Deep Groove Ball Bearing – 35 x 72 x 17 mm

Technical Specifications:

• Type: Single row deep groove ball bearing
• Brand: RICH
• Model Designation: 6207ZNR
• Inner Diameter (d): 35 mm
• Outer Diameter (D): 72 mm
• Width (B): 17 mm
• Internal Clearance: CN (Normal)
• Cage Material: Steel
• Sealing: One-sided non-contact shield (Z)
• Feature: Outer ring groove with snap ring (NR)
• Weight: 0.28 kg
• Country of Origin: China

Performance Characteristics:

• Structural Configuration: Single row deep groove ball bearing engineered for stable radial and axial load management.
• Component Geometry: Includes an integrated snap ring and groove on the outer ring to facilitate secure axial positioning within the housing.
• Dimensional Format: 35 x 72 x 17 mm profile manufactured according to rigorous standardized industrial tolerances.
• Sealing and Protection: Equipped with a single metal shield (Z) to provide particulate defense while maintaining low frictional torque for high-speed efficiency.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
