B24Z-1 C3 RICH 25x62x17

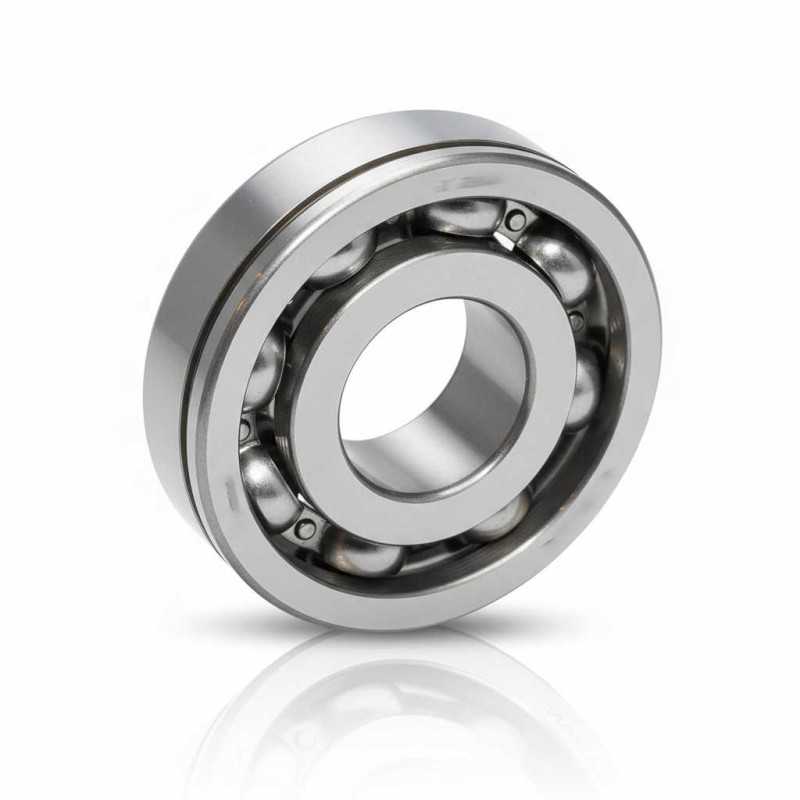

B24Z-1 C3 RICH Single Row Deep Groove Ball Bearing – 25 × 62 × 17 mm

Oe References:

• CLAAS: 0773630500

Technical Specifications:

• Brand: RICH
• Type: Single row deep groove ball bearing
• Model: B24Z-1 C3 RICH
• Inner Diameter (d): 25 mm
• Outer Diameter (D): 62 mm
• Width (B): 17 mm
• Clearance: C3 – Greater than normal
• Cage Material: Steel
• Groove on Outer Ring: Yes
• Sealing: None
• Weight: 0.226 kg
• Country of Origin: China

Performance Characteristics:

• Structural Layout: Single row radial ball assembly with an outer ring snap ring groove.
• Internal Geometry: Deep groove raceways with a single row ball configuration.
• Material Type: High‑carbon chrome bearing steel.
• Dimensional Format: 25 × 62 × 17 mm configuration.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references, if present, are provided solely for identification and do not imply affiliation with other manufacturers.
