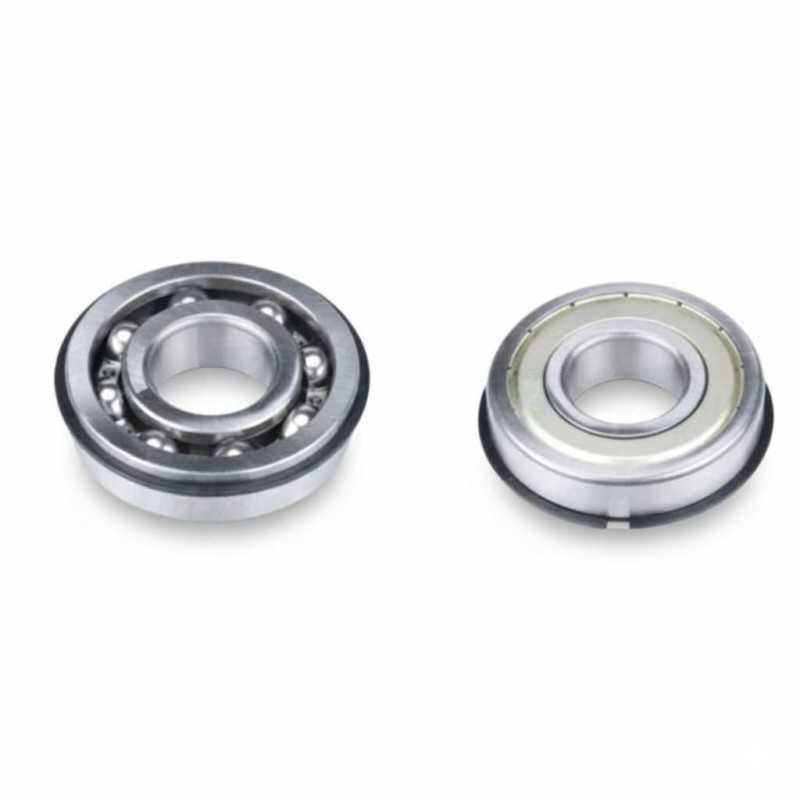

6307 Z NR RICH 35x80x21

6307ZNR RICH – Single Row Deep Groove Ball Bearing – 35 x 80 x 21 mm

Technical Specifications:

• Type: Single row deep groove ball bearing
• Brand: RICH
• Model Designation: 6307 Z NR
• Inner Diameter (d): 35 mm
• Outer Diameter (D): 80 mm
• Width (B): 21 mm
• Cage Material: Steel
• Sealing: One-sided non-contact shield (Z)
• Feature: Outer ring groove with snap ring (NR)
• Weight: 0.42 kg
• Country of Origin: China

Performance Characteristics:

• Structural Configuration: Single row deep groove ball bearing optimized for radial and axial load distribution.
• Component Geometry: Includes a snap ring and corresponding groove on the outer ring for simplified axial retention within the bearing housing.
• Dimensional Format: 35 x 80 x 21 mm standardized dimensions manufactured to precise industrial tolerances.
• Sealing and Protection: Features a single metal shield (Z) providing a non-contact barrier to minimize particulate contamination without increasing torque.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
