F 682 ZZ RICH 2x5x2,3 F682ZZ RICH
search
  • F 682 ZZ RICH 2x5x2,3 F682ZZ RICH

F 682 ZZ RICH 2x5x2,3

RICH
F682ZZ
€1.76
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

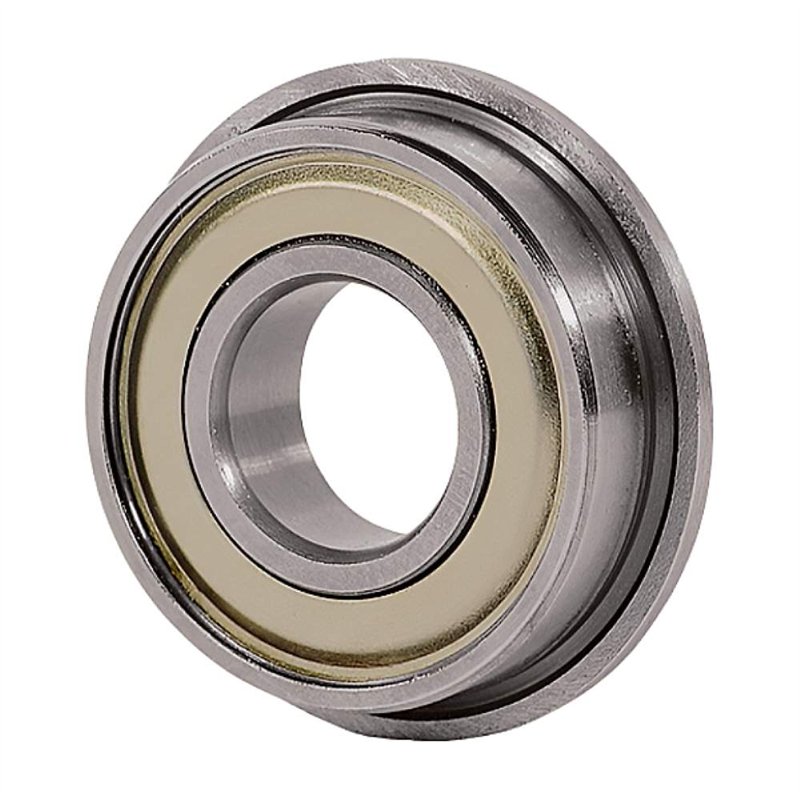

F682ZZ RICH Miniature Flanged Deep Groove Ball Bearing - 2 x 5 x 2.3 mm, Double Shielded

The F682ZZ RICH is an extremely miniature flanged single row deep groove ball bearing designed for applications requiring precise positioning and smooth operation in the most compact spaces. It has key dimensions of 2 mm inner diameter, 5 mm outer diameter, and a width of 2.3 mm. The flange diameter (D1) is 6.1 mm, which aids in axial location. This bearing features a steel cage that is guided by the rolling elements and weighs virtually nothing (0 kg). It has CN (normal) radial internal clearance. It is made in China. The "ZZ" suffix indicates that the bearing has double-sided metal shields for protection against dust and contaminants. These miniature flanged deep groove ball bearings can accommodate radial and axial loads and are ideal for applications where space and weight are at an absolute premium.

Key Specifications:

  • Type:** Miniature Flanged Single Row Deep Groove Ball Bearing
  • Model:** F682ZZ RICH
  • Inner Diameter (d): 2 mm
  • Outer Diameter (D): 5 mm
  • Width (B): 2.3 mm
  • Flange Diameter (D1): 6.1 mm
  • Cage Material:** Steel, guided by rolling elements
  • Radial Internal Clearance:** CN (Normal)
  • Sealing:** Double-sided metal shields (ZZ)
  • Country of Origin:** China
  • Product Feature:** Miniature

Key Features:

  • Extremely Small Size:** Ideal for the most compact applications with minimal space.
  • Flanged Outer Ring:** Facilitates axial positioning and simplifies mounting.
  • Deep Groove Geometry:** Suitable for light radial and axial loads in both directions.
  • Steel Cage:** Provides high strength and durability, ensuring proper ball guidance.
  • CN Clearance:** Standard radial internal clearance for general applications.
  • Double Metal Shields (ZZ): Offers good protection against dust and contaminants in small mechanisms.
  • Ultra-Lightweight:** Minimizes inertia in sensitive applications.
  • Manufacturing Origin:** Made in China.

Data sheet

Inner Diameter
2
Outer Diameter
5
Width
2,3
Weight
0,009
Ball Rows
Single Row
Clearance
CN (Normal)
Category
Miniature Flanged Deep Groove Ball Bearing
