• New

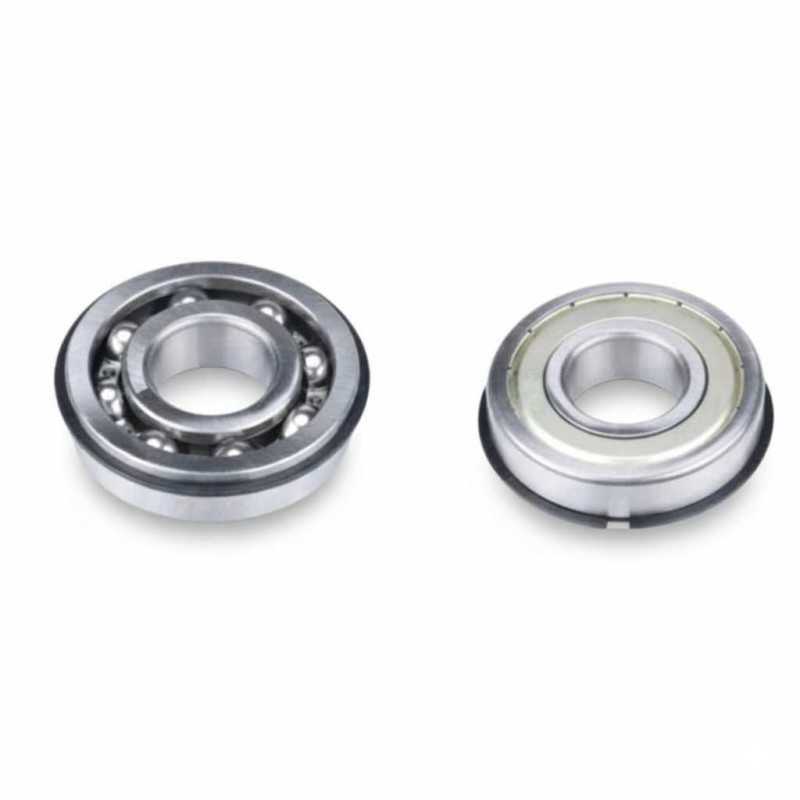

6314 Z NR RICH 70x150x35 6314ZNR RICH
zoom_out_map
6314 Z NR RICH 70x150x35 6314ZNR RICH

6314 Z NR RICH 70x150x35

Type: Single Row Deep Groove Ball Bearing
Model: 6314 ZNR RICH
Dimensions: 70 x 150 x 35 mm
Features: Snap Ring (NR), Single Metal Shield (Z), Steel Cage
Brand: RICH
Origin: China
RICH
6314ZNR
€21.15
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

6314 ZNR RICH – Single Row Deep Groove Ball Bearing – 70 x 150 x 35 mm

Technical Specifications:

  • Type: Single row deep groove ball bearing
  • Brand: RICH
  • Model Designation: 6314 ZNR
  • Inner Diameter (d): 70 mm
  • Outer Diameter (D): 150 mm
  • Width (B): 35 mm
  • Sealing: Z (One-sided non-contact metal shield)
  • Mounting Feature: NR (Snap ring groove with snap ring on the outer ring)
  • Internal Clearance: CN (Normal clearance)
  • Cage Material: Steel
  • Weight: 2.49 kg
  • Country of Origin: China

Performance Characteristics:

  • Structural Configuration: Single-row radial ball bearing featuring a snap ring and groove for simplified axial location within the housing.
  • Sealing System: Integrated with a single metal shield (Z) to provide protection against large debris while maintaining low rotational friction.
  • Load Management: Deep-groove geometry engineered for high radial load capacity and moderate axial load support in both directions.
  • Mechanical Interface: 70 x 150 x 35 mm dimensional format manufactured according to industrial precision tolerances for heavy-duty applications.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
70
Outer Diameter
150
Width
35
Ball Rows
Single Row
Sealing
Cover On One Side
Category
Single Row Deep Groove Ball Bearing
