TM 207 NR C3 RICH 35x72x7

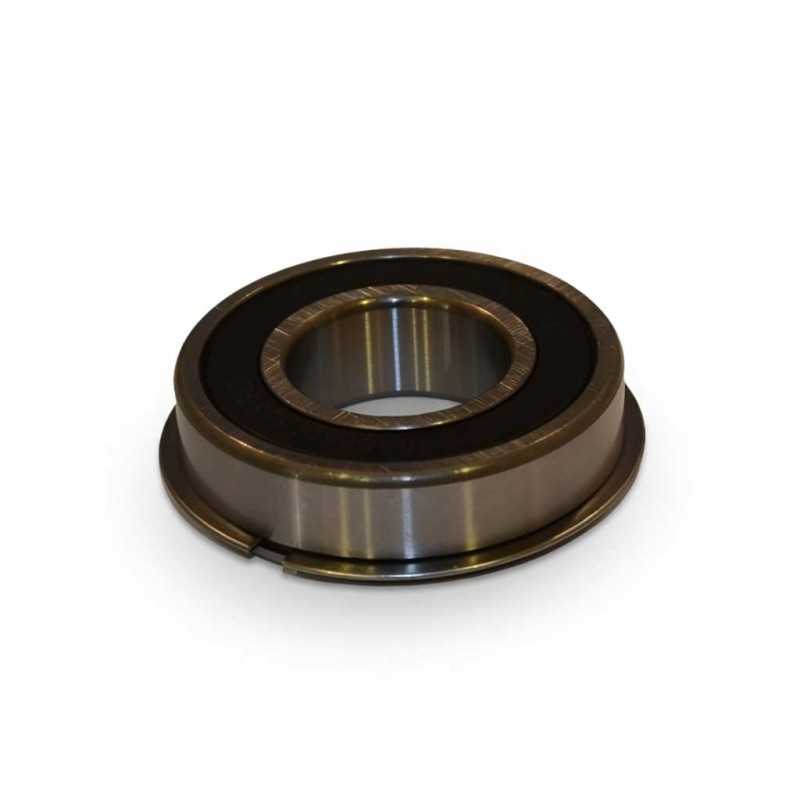

TM 207 NR C3 RICH – Single Row Deep Groove Ball Bearing – 35 x 72 x 17 mm

OE Reference:

• MITSUBISHI: ME580509

Technical Specifications:

• Type: Single row deep groove ball bearing
• Brand: RICH
• Model Designation: TM 207 NR C3
• Inner Diameter (d): 35 mm
• Outer Diameter (D): 72 mm
• Width (B): 17 mm
• Internal Clearance: C3 (Greater than normal)
• Special Features: Annular groove with snap ring (NR) in the outer ring
• Cage Material: Steel
• Country of Origin: China

Performance Characteristics:

• Mounting Configuration: Equipped with a snap ring and groove (NR) on the outer ring to facilitate axial location and simplified installation within the housing.
• Thermal Management: Designed with C3 slightly increased radial internal clearance to accommodate thermal expansion during high-speed rotation.
• Structural Design: Single row deep groove geometry engineered to support combined radial and axial loads with low frictional torque.
• Mechanical Interface: 35 x 72 x 17 mm dimensional format produced to standardized industrial tolerances for consistent rotational performance.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
