TM 3/28 NR C3 RICH 28x68x18

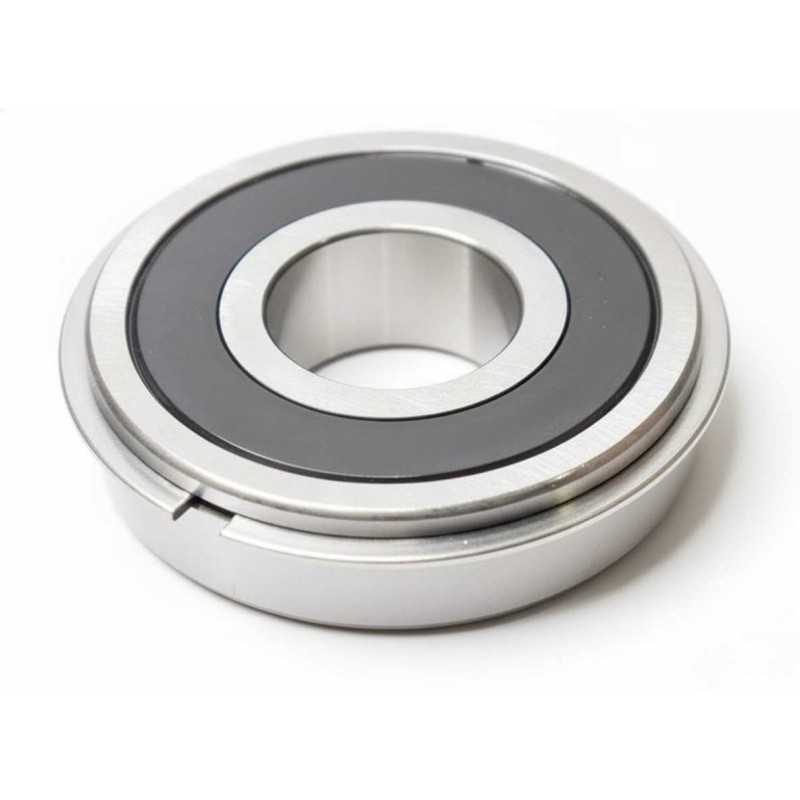

TM 3/28 NR C3 RICH – Single Row Deep Groove Ball Bearing – 28 x 68 x 18 mm

OE Reference:

• MITSUBISHI: MH040097

Technical Specifications:

• Type: Single row deep groove ball bearing
• Brand: RICH
• Model Designation: TM 3/28 NR C3
• Inner Diameter (d): 28 mm
• Outer Diameter (D): 68 mm
• Width (B): 18 mm
• Internal Clearance: C3 (Greater than normal)
• Special Features: Groove with snap ring (NR) on outer ring
• Execution: Reinforced execution (Yes)
• Cage Material: Steel
• Sealing: Double-sided rubber contact seals (2RS)
• Weight: 0.31 kg
• Country of Origin: China

Performance Characteristics:

• Reinforced Design: Specifically engineered as a reinforced execution to withstand higher mechanical stress and demanding operating conditions.
• Mounting Configuration: Features an integrated snap ring and groove (NR) on the outer ring for precise and simplified axial securing within the housing.
• Thermal Stability: Utilizing C3 radial internal clearance to accommodate thermal expansion during high-speed or high-temperature operation.
• Environmental Protection: Equipped with double-sided rubber contact seals to ensure long-term lubricant retention and total protection against contaminants.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
