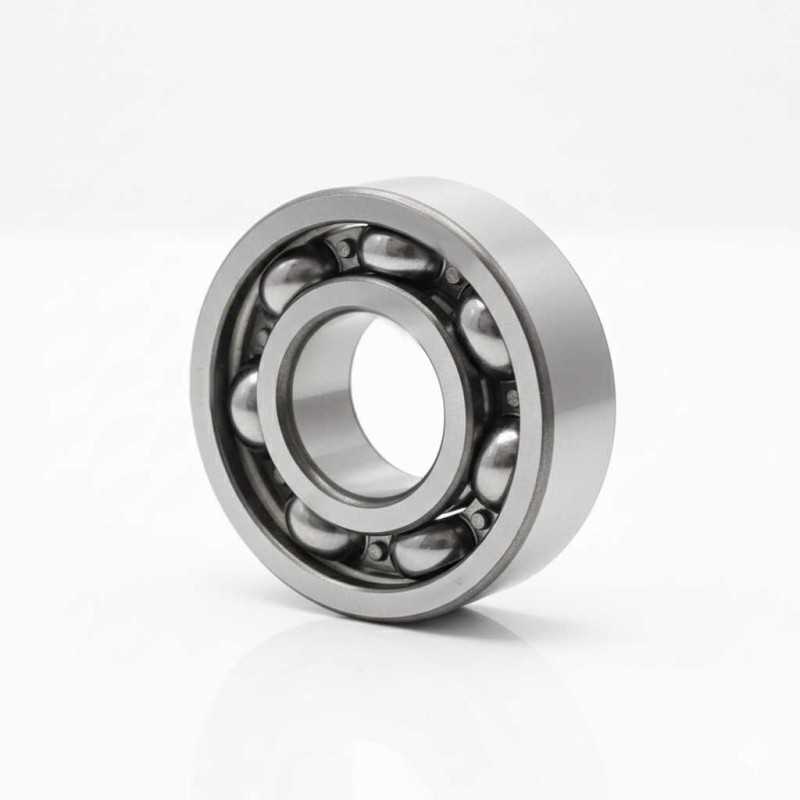

B22-27 C3 RICH Single Row Deep Groove Ball Bearing – 22 × 52 × 15 mm
OE Reference: 09262-22031 (SUZUKI)
OE Reference: 24155-63J01 (SUZUKI)
The B22-27 C3 RICH is a single row deep groove ball bearing with a 22 × 52 × 15 mm dimensional format. It features an open configuration and a C3 radial internal clearance classification associated with temperature-related dimensional variation.
Technical Specifications:
- Brand: RICH
- Type: Single row deep groove ball bearing
- Model: B22-27 C3 RICH
- Inner Diameter (d): 22 mm
- Outer Diameter (D): 52 mm
- Width (B): 15 mm
- Internal Clearance: C3
- Cage Material: Steel
- Sealing: Open (None)
- Weight: 0.146 kg
- Country of Origin: China
Performance Characteristics:
- Load Profile: Radial load arrangement with allowance for axial forces in both directions
- Thermal Classification: C3 clearance associated with thermal expansion behavior
- Structural Layout: Steel cage guidance for rolling element stability
- Material Type: High‑carbon chrome bearing steel
- Application Interface: Associated with Suzuki transmission and drivetrain assembly interfaces
Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
