6209 Z NR RICH 45x85x19

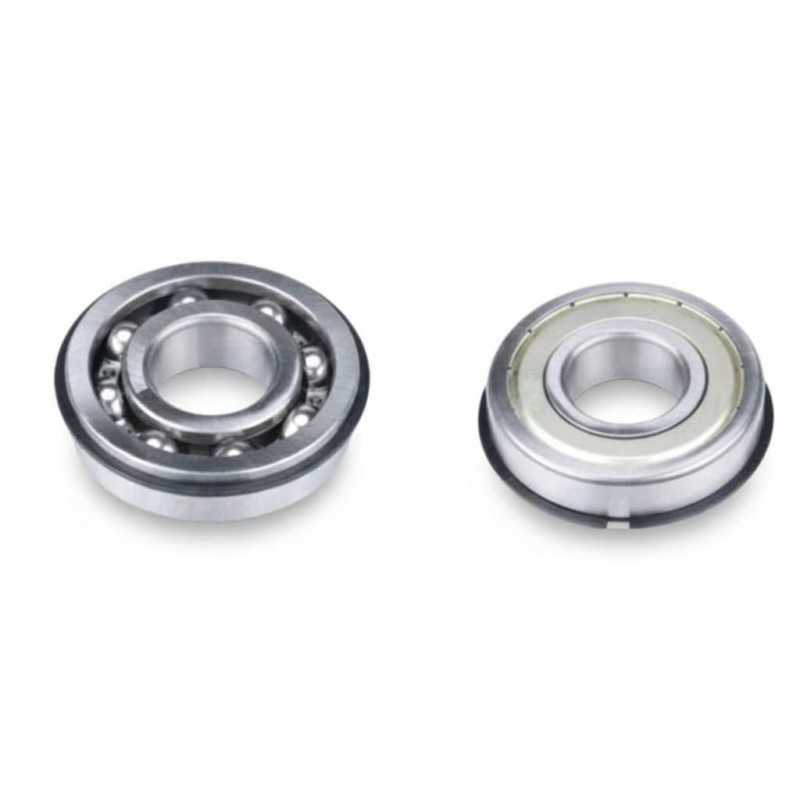

6209ZNR RICH – Single Row Deep Groove Ball Bearing – 45 x 85 x 19 mm

Technical Specifications:

• Type: Single row deep groove ball bearing
• Brand: RICH
• Model Designation: 6209ZNR
• Inner Diameter (d): 45 mm
• Outer Diameter (D): 85 mm
• Width (B): 19 mm
• Internal Clearance: CN (Normal clearance)
• Cage Material: Steel
• Outer Ring Feature: Groove with a snap ring (NR)
• Sealing: One-sided non-contact metal shield (Z)
• Weight: 0.412 kg
• Country of Origin: China

Product Details:

• Components: Consists of a precision inner ring, an outer ring machined with a snap ring groove and fitted with a matching snap ring, a single row ball complement, a pressed steel cage, and a single-sided sheet steel non-contact shield.
• Internal Geometry: Engineered with deep, high-conformity raceway paths to sustain heavy radial loads combined with moderate bidirectional thrust loads, utilizing the outer ring snap ring layout to enable fast axial location and secure mounting directly inside the housing bore.
• Dimensional Set: Standardized metric 62-series boundary architecture providing a 45 mm inner bore diameter, an 85 mm outside diameter, and a 19 mm structural width.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
