25TM09 N 2RS C3 RICH 25x60x25/17

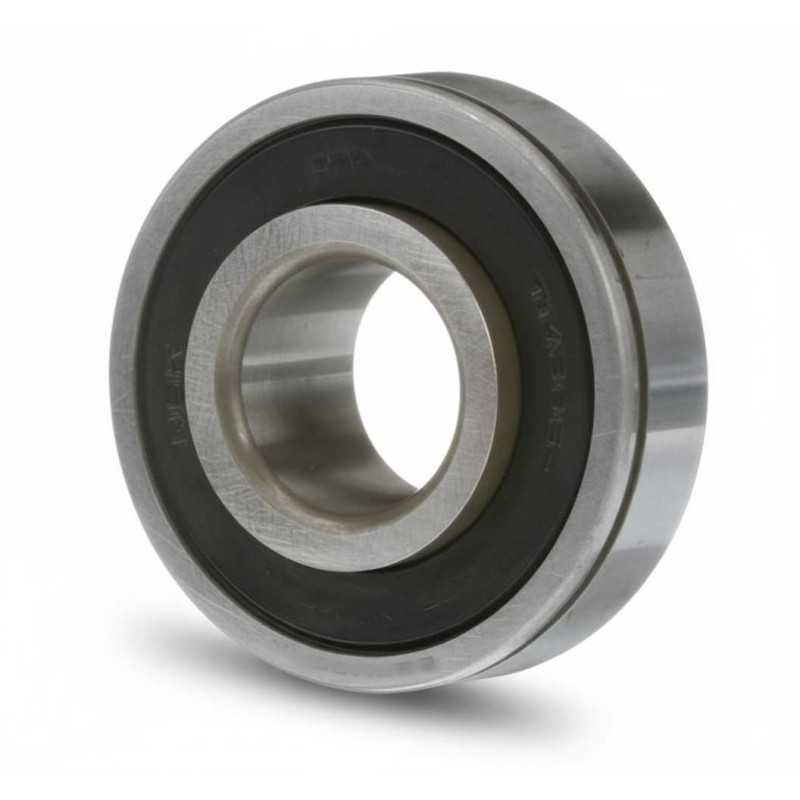

25TM09 N 2RS C3 RICH – Single Row Deep Groove Ball Bearing – 25 × 60 × 25 mm

OE References:

• 90903-63009 TOYOTA
• 90363-25034 TOYOTA
• 90363-25044 TOYOTA
• 90080-36173 TOYOTA

Technical Specifications:

• Type: Single row deep groove ball bearing
• Brand: RICH
• Model Designation: 25TM09 N 2RS C3
• Inner Diameter (d): 25 mm
• Outer Diameter (D): 60 mm
• Width (B): 25 mm
• Outer Ring Width (C): 17 mm
• Internal Clearance: C3
• Groove on Outer Ring: Yes (N)
• Sealing: Double-sided rubber contact seals (2RS)
• Weight: 0.248 kg
• Country of Origin: China

Product Details:

• Internal Clearance: C3 radial internal clearance specification.
• Outer Ring Groove: Snap ring groove (N) on the outer ring.
• Sealing Configuration: Rubber contact seals (2RS) on both lateral faces.
• Dimensional Format: 25 mm inner diameter, 60 mm outer diameter, 25 mm total width, and 17 mm outer ring width.
• Mass: 0.248 kg unit weight.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are provided solely for identification and do not imply affiliation with other manufacturers.
