GW 210 PPB2 RICH 49,225x90x30,163

The GW 210 PPB2 RICH insert ball bearing (49.225 x 90 x 30.163 mm) features a rounded outer ring and double-sided non-contact shields, ideal for agricultural and conveyor systems.

RICH
W210PPB2
€14.22
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

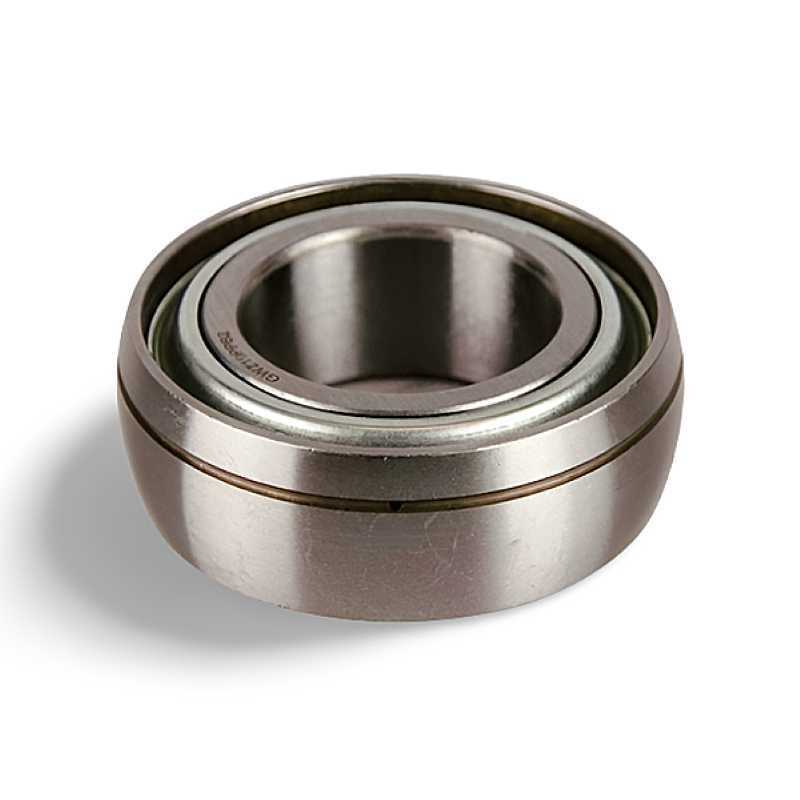

GW 210 PPB2 RICH Insert Ball Bearing - 49.225 x 90 x 30.163 mm

Technical Specifications:

  • Product Type: Insert Ball Bearing
  • Model Designation: GW 210 PPB2
  • Brand: RICH
  • Bore Diameter (d): 49.225 mm
  • Outer Diameter (D): 90 mm
  • Outer Ring Width (C): 30.163 mm
  • Sealing: Double-sided non-contact shields
  • Outer Ring Profile: Rounded
  • Weight: 0.657 kg
  • Country of Origin: China

The GW 210 PPB2 RICH is a robust insert ball bearing designed specifically for demanding applications like agricultural machinery and conveyor systems. It features a non-standard bore of 49.225 mm, an outer diameter of 90 mm, and an outer ring width of 30.163 mm. The bearing is equipped with double-sided non-contact shields to effectively protect the internal components from large contaminants while maintaining low running friction. The rounded outer ring profile is engineered to fit securely within a specific housing type (often used in plough or disc harrow assemblies), compensating for misalignment and ensuring smooth operation in harsh environments.

Key Performance Advantages:

  • Rounded Outer Ring: Designed for specialized housing units, providing alignment tolerance.
  • Double-Sided Shields: Provides robust protection against dirt and debris without increasing friction.
  • High Radial Load: Deep groove geometry supports significant radial forces.
  • RICH Quality: A durable component built for longevity in heavy-duty machinery.

Data sheet

Inner Diameter
49.225
Outer Diameter
90
Width
30.163
Weight
0,657
Ball Rows
Single Row
Category
Insert Ball Bearing with Square Hole
