83A941 C3 RICH 45x100x28

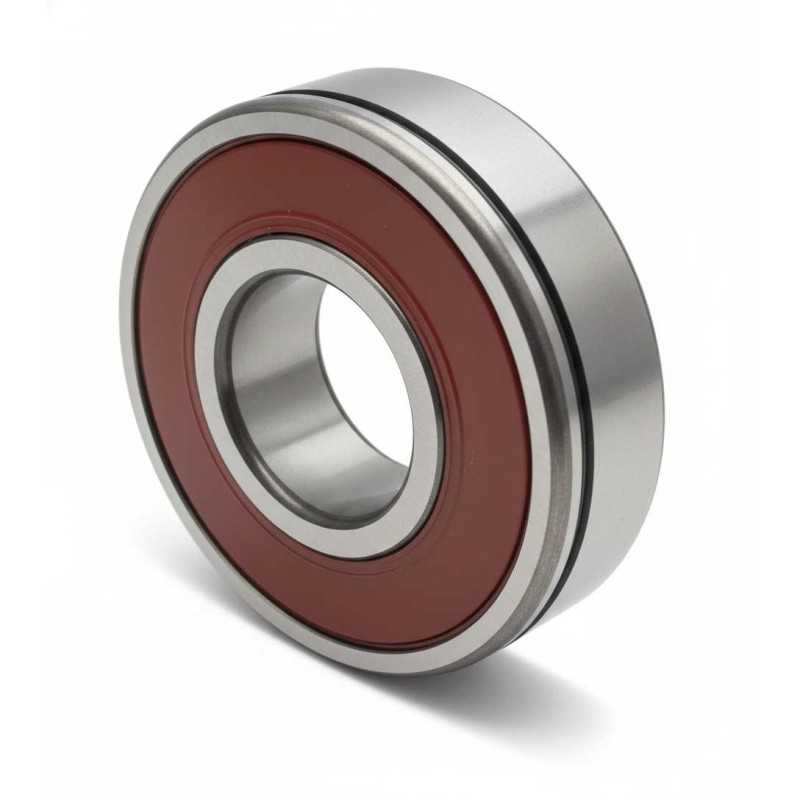

83A941 C3 RICH – Single Row Deep Groove Ball Bearing – 45 × 100 × 28 mm

OE References:

• 90363-45011 TOYOTA
• 90363-45010 TOYOTA

Technical Specifications:

• Type: Single row deep groove ball bearing
• Brand: RICH
• Model Designation: 83A941 C3
• Inner Diameter (d): 45 mm
• Outer Diameter (D): 100 mm
• Width (B): 28 mm
• Weight: 0.91 kg
• Cage Material: Steel
• Internal Clearance: C3
• Sealing: Double-sided rubber contact seals (2RS)
• Outer Ring Feature: Snap ring groove
• Country of Origin: China

Product Details:

• Design: Single row deep groove configuration.
• Outer Ring Groove: Snap ring groove on the outer ring.
• Internal Clearance: C3 radial internal clearance specification.
• Sealing Configuration: Rubber contact seals (2RS) on both lateral faces.
• Construction: Steel cage and machined raceways.
• Dimensional Format: 45 mm inner diameter, 100 mm outer diameter, and 28 mm width.
• Mass: 0.91 kg unit weight.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are provided solely for identification and do not imply affiliation with other manufacturers.
