6203-2RS RICH 17x40x12

Type: Single Row Deep Groove Ball Bearing (Sealed)
Model: 6203-2RS RICH
Dimensions: 17 x 40 x 12 mm
Brand: RICH
Origin: China
RICH
6203-2RS

Volume discounts

Quantity Unit price
10 €0.42
20 €0.40
50 €0.38
100 €0.36
€0.47
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

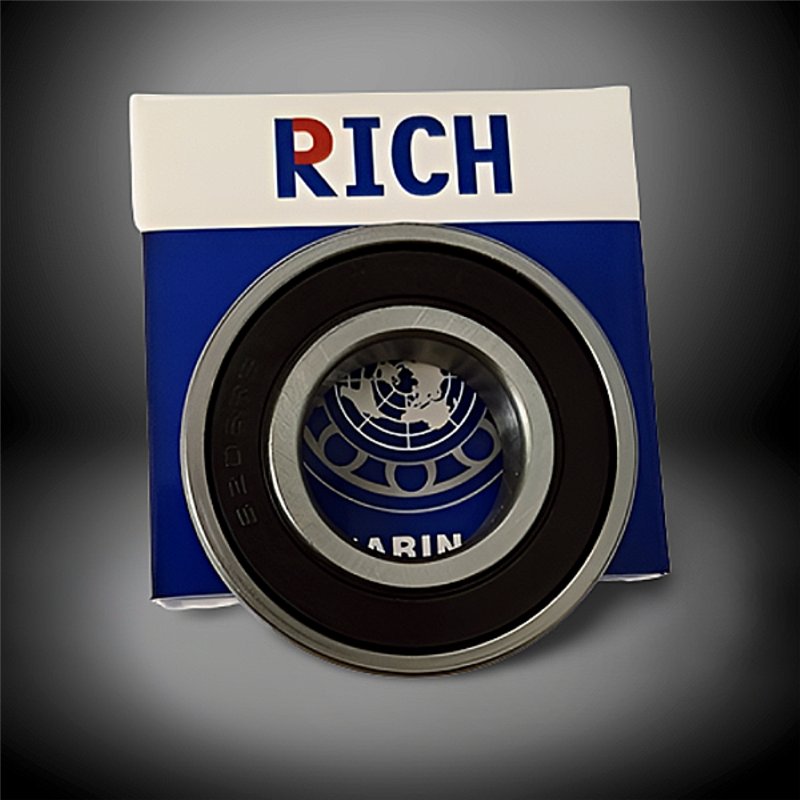

6203-2RS RICH Single Row Deep Groove Ball Bearing – 17 × 40 × 12 mm

Technical Specifications:

  • Brand: RICH
  • Type: Single row deep groove ball bearing
  • Model: 6203-2RS RICH
  • Inner Diameter (d): 17 mm
  • Outer Diameter (D): 40 mm
  • Width (B): 12 mm
  • Sealing: 2RS (Double-sided rubber contact seals)
  • Cage: Steel
  • Clearance: CN
  • Weight: 0.065 kg
  • Country of Origin: China

Performance Characteristics:

  • Raceway Geometry: Deep groove
  • Internal Clearance: CN
  • Cage Type: Steel
  • Sealing Configuration: 2RS
  • Lubrication: Factory-filled grease

Description:

6203-2RS RICH is a single row deep groove ball bearing with CN internal clearance, steel cage and double-sided rubber contact seals. Dimensional and structural characteristics correspond to the 17 × 40 × 12 mm specification.

Additional Technical Data:

  • Designation: 6203-2RS
  • Bore Type: Cylindrical
  • Sealing Material: NBR
  • Material: Bearing steel

Transparency Note: This component is manufactured under the RICH brand. Dimensions and references are used for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
17
Outer Diameter
40
Width
12
Weight
0,07
Ball Rows
Single Row
Sealing
Lip Seal On Both Sides
Cage
Steel Cage
Clearance
CN (Normal)
Category
Single Row Deep Groove Ball Bearing
