6208-2RS RICH 40x80x18

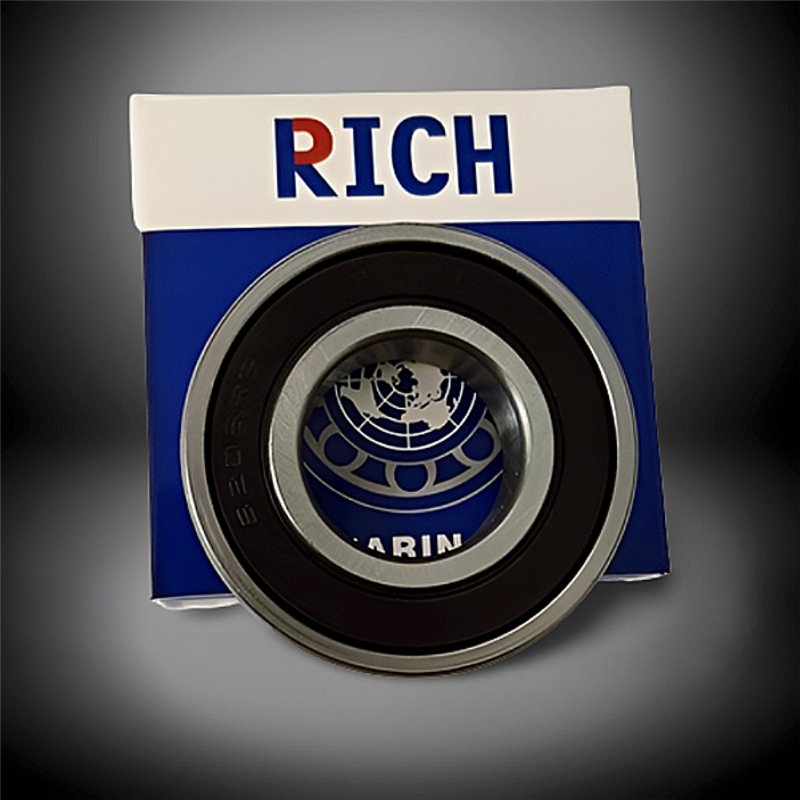

6208-2RS RICH Single Row Deep Groove Ball Bearing – 40 × 80 × 18 mm

Technical Specifications:

• Brand: RICH
• Type: Single row deep groove ball bearing
• Model: 6208-2RS RICH
• Inner Diameter (d): 40 mm
• Outer Diameter (D): 80 mm
• Width (B): 18 mm
• Sealing: 2RS (Double-sided rubber contact seals)
• Cage: Steel
• Clearance: CN (Normal)
• Weight: 0.366 kg
• Country of Origin: China

Performance Characteristics:

• Raceway Geometry: Deep groove
• Internal Clearance: CN
• Cage Type: Steel
• Sealing Configuration: 2RS (Contact type)
• Lubrication: Factory-filled grease

6208-2RS RICH is a single row deep groove ball bearing with CN internal clearance, steel cage and double-sided rubber contact seals. Dimensional and structural characteristics correspond to the 40 × 80 × 18 mm specification.

Additional Technical Data:

• Designation: 6208-2RS
• Bore Type: Cylindrical
• Sealing Material: NBR (Nitrile Butadiene Rubber)
• Material: Bearing steel

Transparency Note: This component is manufactured under the RICH brand. Dimensions and references are used for identification and do not imply affiliation with other manufacturers.
