6309/C3 RICH 45x100x25 6309C3 RICH
search
  • 6309/C3 RICH 45x100x25 6309C3 RICH

6309/C3 RICH 45x100x25

RICH
6309C3
€3.54
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

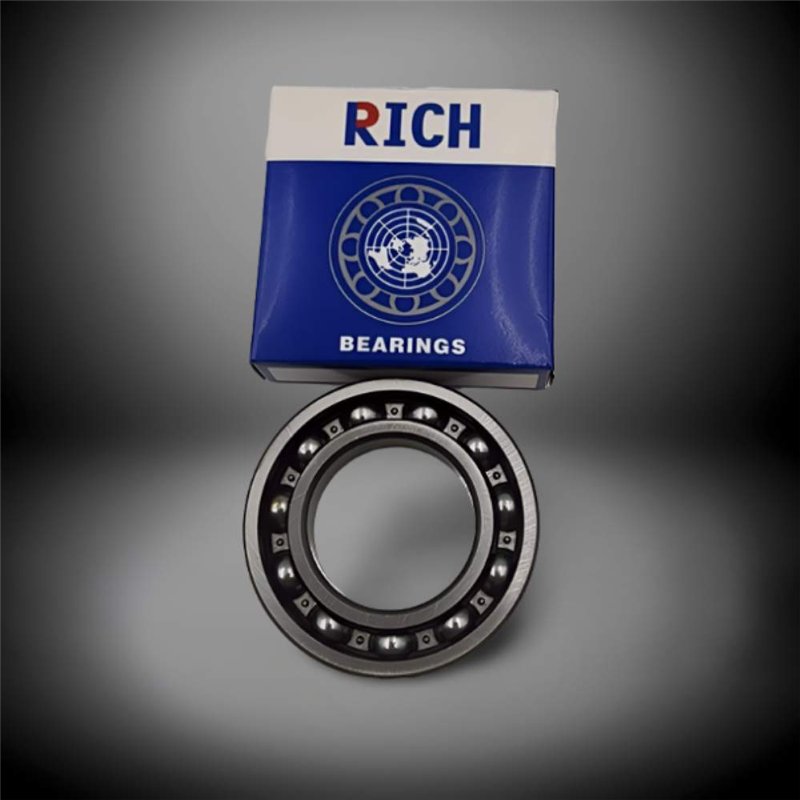

6309 C3 RICH Single Row Deep Groove Ball Bearing - 45 x 100 x 25 mm

The 6309 C3 RICH is a single row deep groove ball bearing designed for smooth and efficient operation in various applications where higher than normal radial clearance is required. This non-sealed bearing has key dimensions of 45 mm inner diameter, 100 mm outer diameter, and a width of 25 mm. It features a steel cage and C3 radial clearance, which is greater than normal (CN). The listed weight is 0 kg, and it is made in China.

Key Specifications:

  • Bearing Type: Single Row Deep Groove Ball Bearing
  • Model:** 6309 C3 RICH
  • Inner Diameter (d):** 45 mm
  • Outer Diameter (D):** 100 mm
  • Width (B):** 25 mm
  • Cage Material:** Steel
  • Internal Clearance:** C3 - greater than normal
  • Sealing:** None
  • Country of Origin:** China

Key Features:

  • Deep Groove Design:** Provides good radial and axial load capacity in both directions.
  • C3 Clearance:** Suitable for applications with higher operating temperatures, shaft or housing fits that could reduce clearance, or where greater running clearance is desired.
  • Versatile Use:** Suitable for a wide range of industrial machinery.
  • Steel Cage:** Offers strength and durability.
  • Manufacturing Origin:** Made in China.

Data sheet

Inner Diameter
45
Outer Diameter
100
Width
25
Weight
0,82
Ball Rows
Single Row
Clearance
C3 (Greater than Normal)
