RMS 11 RICH 34,925x88,9x22,225

RICH
RMS11
€8.33
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

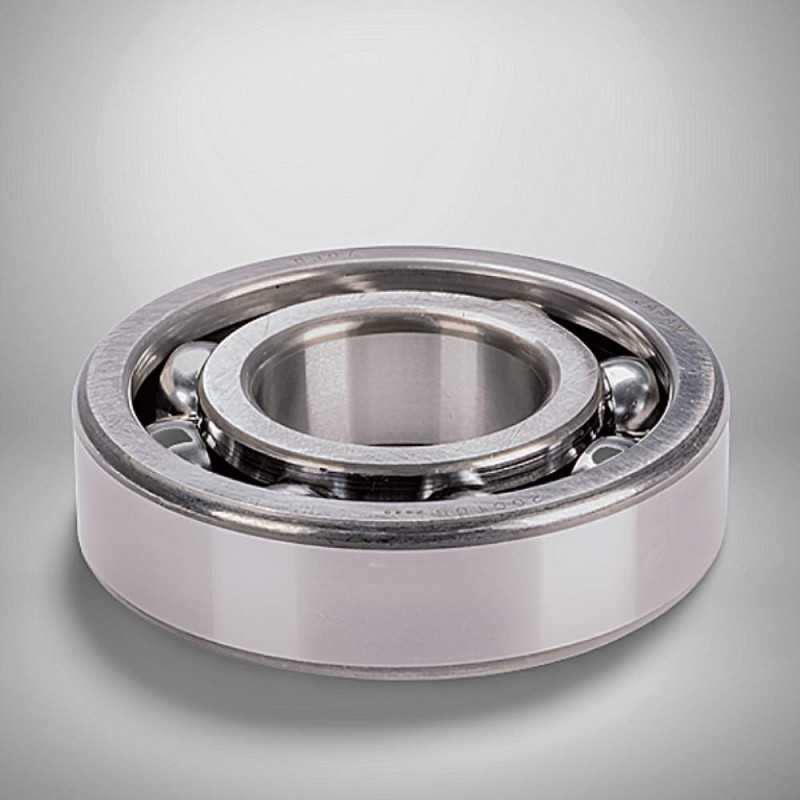

RMS11 RICH Single Row Deep Groove Ball Bearing - 34.92 x 88.9 x 22.22 mm, Open Type, Normal Clearance

The RMS11 RICH is an open-type single row deep groove ball bearing designed for applications requiring smooth and efficient rotation. It has key dimensions of 34.92 mm inner diameter, 88.9 mm outer diameter, and a width of 22.22 mm. This bearing weighs approximately 0.625 kg. It features a steel cage and has CN (normal) clearance. It is made in China and does not have any seals, making it suitable for applications where external lubrication or no sealing is required. Single row deep groove ball bearings can accommodate radial and axial loads in both directions.

Key Specifications:

  • Type:** Single Row Deep Groove Ball Bearing
  • Model:** RMS11 RICH
  • Inner Diameter (d): 34.92 mm (1.375 inches)
  • Outer Diameter (D): 88.9 mm (3.5 inches)
  • Width (B): 22.22 mm (0.8748 inches)
  • Cage Material:** Steel
  • Clearance:** CN (Normal)
  • Sealing:** None (Open)
  • Weight:** 0.625 kg
  • Country of Origin:** China

Key Features:

  • Deep Groove Geometry:** Suitable for moderate radial and axial loads in both directions.
  • Steel Cage:** Offers high strength and durability.
  • Open Type (No Seals): Allows for relubrication and high-speed operation.
  • Normal Clearance (CN): Standard radial internal clearance.
  • Imperial Dimensions:** Common in certain applications and industries.
  • Manufacturing Origin:** Made in China.

Data sheet

Inner Diameter
34.925
Outer Diameter
88,9
Width
22.225
Weight
0,62
Ball Rows
Single Row
Cage
Steel Cage
Clearance
CN (Normal)
