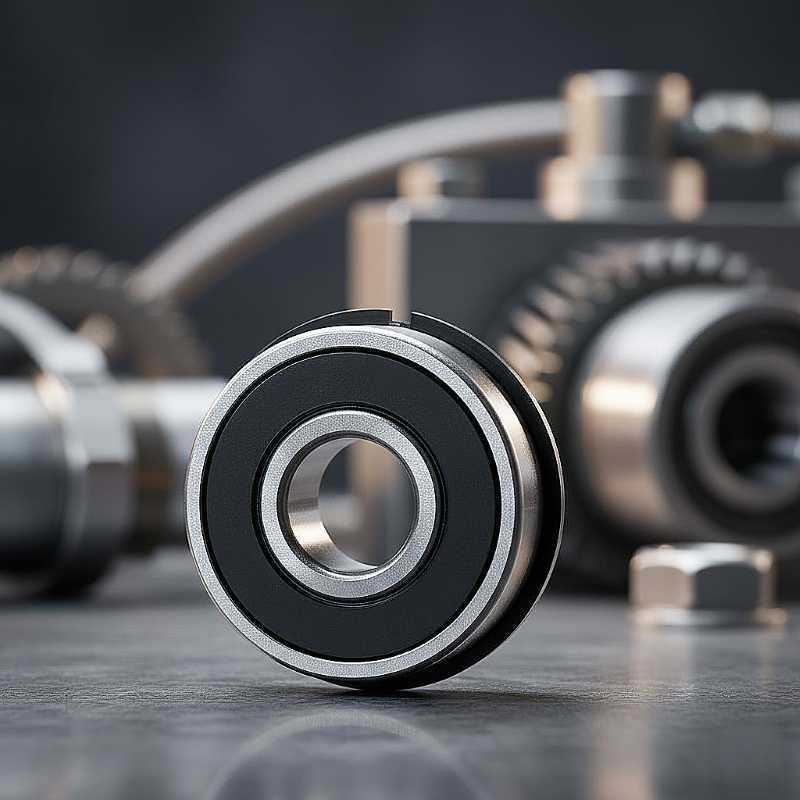

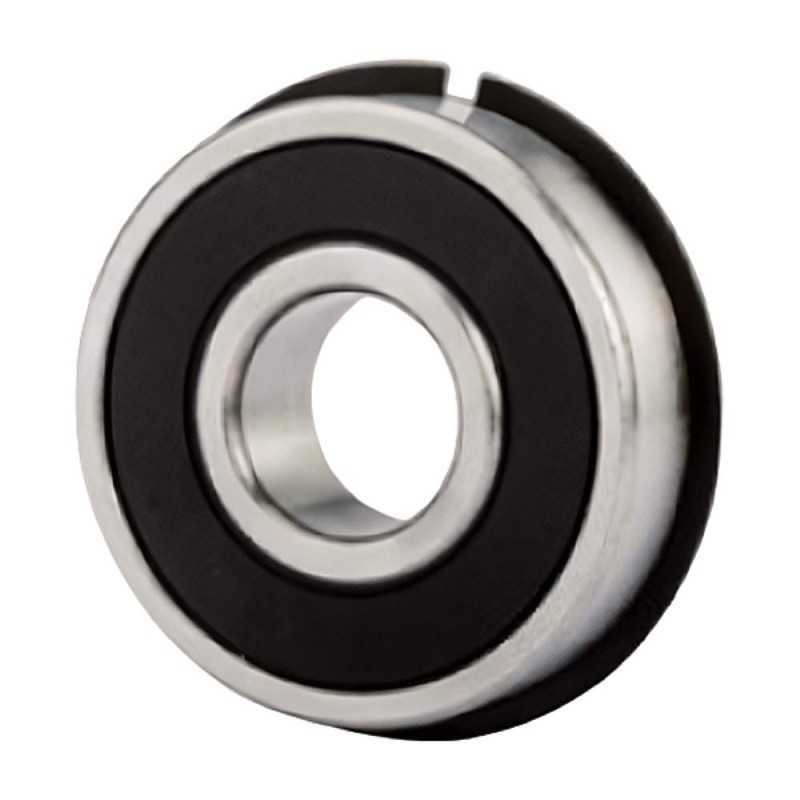

6209-2RS C3 NR RICH 45x85x19

6209 2RS.NR C3 RICH – 45x85x19 mm – Single Row Deep Groove Ball Bearing – Sealed, Snap Ring, C3 Clearance

Technical Specifications:

• Type: Single Row Deep Groove Ball Bearing
• Brand: RICH
• Model Designation: 6209 2RS.NR C3 RICH
• Known OE Reference: CLAAS 7700005001
• Inner Diameter (d): 45 mm
• Outer Diameter (D): 85 mm
• Width (B): 19 mm
• Clearance: C3 - Greater than Normal
• Groove on Outer Ring: With Snap Ring Groove and Snap Ring (NR)
• Sealing: Double-sided Rubber, Contact Seals (2RS)
• Weight: 0.424 kg
• Country of Origin: China

The 6209 2RS.NR C3 RICH single row deep groove ball bearing is a versatile and robust component, engineered to handle both radial and axial loads with exceptional efficiency and reliability. Manufactured by RICH, this bearing features precise 45x85x19 mm dimensions and weighs 0.424 kg, ensuring consistent performance in demanding environments.

This RICH deep groove ball bearing is equipped with double-sided rubber contact seals (2RS), providing superior protection against contaminants such as dust, dirt, and moisture, while effectively retaining the lubricant. This sealing design significantly extends the bearing's service life and reduces maintenance requirements. A notable feature is the groove on the outer ring with a snap ring (NR), which facilitates axial positioning and simplifies mounting in applications where an axial locating element is required, thereby saving design and machining costs. With a C3 - greater than normal clearance, this bearing is suitable for applications where there might be temperature differences between the inner and outer rings or where slight misalignment could occur, allowing for thermal expansion and reduced friction. Proudly produced in China, the 6209 2RS.NR C3 RICH bearing guarantees consistent quality, high efficiency, and exceptional durability, making it an excellent choice for various industrial machinery and agricultural equipment, including as a replacement for CLAAS 7700005001.

Key Advantages:

• Versatile Load Handling: Efficiently supports both radial and axial loads.
• Enhanced Protection: Double-sided rubber contact seals (2RS) offer superior contaminant exclusion.
• Easy Axial Positioning: Integrated snap ring groove and snap ring (NR) simplify mounting.
• C3 Clearance: Accommodates thermal expansion and slight misalignments for optimal performance.
• A RICH product, symbolizing consistent quality and reliable performance, made in China.
