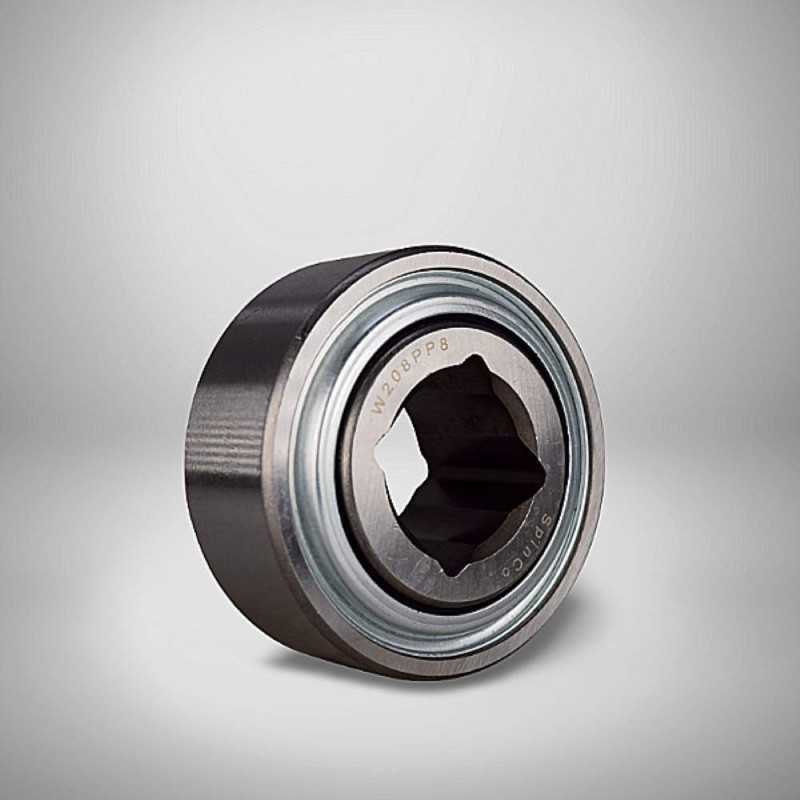

W208PPB8 RICH 29,972x80x36,5

W208PPB8 RICH Insert Ball Bearing with Square Hole – 29.972 x 80 x 36.5 mm – Rounded Outer Ring & Advanced Triple-Lip Sealing

Technical Specifications:

• Bearing Type: Insert Ball Bearing with Square Hole
• Model Designation: W208PPB8
• Brand: RICH
• Precision Dimensions:
  • Square Bore (dk): 29.972 mm (-0.127 / +0.127 mm tolerance)
  • Outer Diameter (D): 80 mm
  • Inner Diameter (d): 31.4 mm
  • Inner Ring Width: 36.5 mm
  • Outer Ring Width (C): 30.2 mm
  • Shaft Size Compatibility: 28.575 mm
• Weight: 0.765 kg
• Outer Ring Profile: Rounded
• Sealing: Triple-lip seal covered with metal plate on both sides (suitable for heavily contaminated applications at low rotation speeds)
• Country of Manufacture: China
• Cross-Reference Part Numbers: A-W208PPB8 JOHN DEERE

Get unparalleled performance in demanding agricultural and industrial environments with the W208PPB8 RICH insert ball bearing with square hole! This specialized bearing is engineered for ultimate durability, especially in applications facing significant contamination and variable loads. Its distinctive square bore of 29.972 mm (+0.127/-0.127 mm) ensures a secure, non-rotational fit on square shafts, vital for robust power transmission. The rounded outer ring design is perfect for systems where the bearing runs against a curved track or in a spherical housing, accommodating minor misalignment and promoting smoother, quieter operation, which extends both bearing and system lifespan. A key feature is the advanced triple-lip seal, reinforced with a metal plate on both sides. This sealing configuration provides exceptional protection against severe contaminants like dust, dirt, and moisture, while effectively retaining internal lubricant. This significantly enhances the bearing's longevity and reduces maintenance in harsh, low-speed operating conditions.

With its precise dimensions of 29.972 mm square bore, 80 mm outer diameter, and an inner ring width of 36.5 mm (outer ring width of 30.2 mm), this RICH insert ball bearing is perfectly suited for agricultural equipment and various heavy-duty industrial applications needing reliable power transmission and superior sealing. It's designed to accommodate a 28.575 mm shaft size, ensuring broad compatibility.

Proudly manufactured by RICH in China, this quality ball bearing is an essential component for critical machinery in Europe and across global industrial sectors. It is also a direct replacement for the A-W208PPB8 JOHN DEERE part.

Key Performance Advantages:

• Secure Square Shaft Mounting: The precise square bore ensures a strong, non-rotational connection, critical for efficient power transmission.
• Superior Contaminant Protection: Advanced triple-lip seals with metal covers offer exceptional defense against severe contamination, drastically extending bearing life.
• Rounded Outer Ring for Misalignment: Ideal for applications with minor misalignment, promoting smoother operation and reduced stress.
• Enhanced Durability: Robust construction ensures reliable, long-lasting performance even under the most challenging operating conditions.
• Reduced Maintenance: Highly effective sealing and optimal lubricant retention mean less frequent servicing and increased uptime.
• Versatile Application: Perfect for agricultural machinery, heavy-duty conveyors, and equipment in contaminated industrial settings.
• RICH Quality & Compatibility: Manufactured in China by RICH, guaranteeing consistent quality and direct interchangeability with OEM parts like A-W208PPB8 JOHN DEERE.
