SS F696 RICH 6x15x5

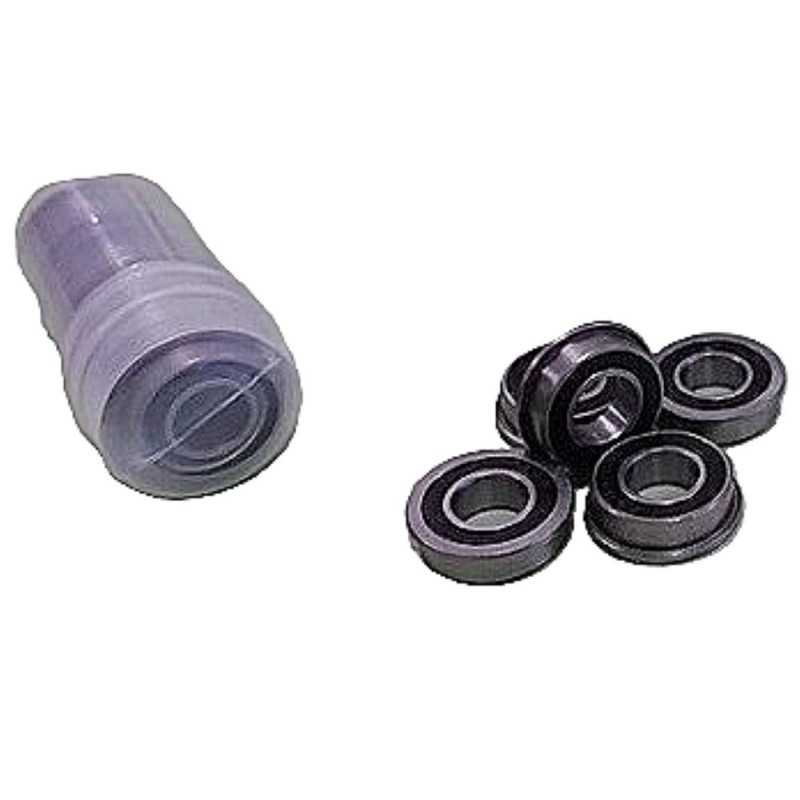

SS.F696 RICH Miniature Flanged Deep Groove Ball Bearing - Stainless Steel - 6 x 15 x 5 mm

The SS.F696 RICH is a high-quality miniature flanged deep groove ball bearing, meticulously manufactured by RICH in China. This bearing is constructed from stainless steel, offering superior corrosion resistance, making it an excellent choice for applications exposed to moisture or harsh environments. Its integrated flange on the outer ring allows for easy and precise mounting, simplifying assembly and providing axial location without the need for additional components.

With precise dimensions of 6 mm bore, 15 mm outer diameter, and 5 mm width, this bearing is designed for compact and precise applications. It features a steel cage guided by the rolling elements, ensuring robust performance and reliable operation. The bearing has a CN (normal) clearance, indicating a standard radial internal clearance suitable for most general applications, ensuring smooth and consistent performance. The "2RS" in its designation indicates that it is equipped with double-sided rubber contact seals, providing excellent protection against contaminants like dust and moisture while effectively retaining lubricant, ensuring extended service life and reduced maintenance requirements.

Weighing just 0.004 kg, this extremely lightweight yet durable component from RICH offers dependable performance and resilience in small-scale applications. It is ideally suited for medical devices, precision instruments, fishing reels, small electric motors, and various other light-duty applications where corrosion resistance, precise mounting, and reliable rotation in limited space are crucial.

Key Specifications:

• Type: Flanged Deep Groove Ball Bearing, Miniature
• Brand: RICH
• Model: SS.F696 RICH
• Material: Stainless Steel
• Dimensions: 6 mm bore x 15 mm outer diameter x 5 mm width
• Bore Diameter (d): 6 mm
• Outer Diameter (D): 15 mm
• Width: 5 mm
• Cage Material: Steel, guided by the rolling elements
• Clearance: CN - normal clearance
• Sealing: Double-sided rubber, contact (Sealed on both sides)
• Weight: 0.004 kg
• Country of Origin: China

Key Advantages:

• Stainless Steel Construction: Provides excellent corrosion resistance for applications in moist or aggressive environments.
• Integrated Flange: Simplifies mounting and axial positioning, reducing assembly time and component count.
• Miniature Design: Ideal for compact applications where space is extremely limited.
• Robust Sealing: Double-sided rubber contact seals offer superior protection against contaminants and ensure longer lubricant retention, enhancing durability.
• RICH Quality: Manufactured by RICH in China, guaranteeing consistent quality and dependable performance for precision miniature applications.
• Versatile Performance: Suitable for high speeds and moderate radial and axial loads within its small footprint.
