6307 Z NR C3 RICH 35x80x21 6307-Z-NR-C3 RICH
search
  • 6307 Z NR C3 RICH 35x80x21 6307-Z-NR-C3 RICH

6307 Z NR C3 RICH 35x80x21

Ensure smooth axial positioning with the 6307.Z NR.C3 RICH deep groove ball bearing.

RICH
6307-Z-NR-C3
€7.06
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

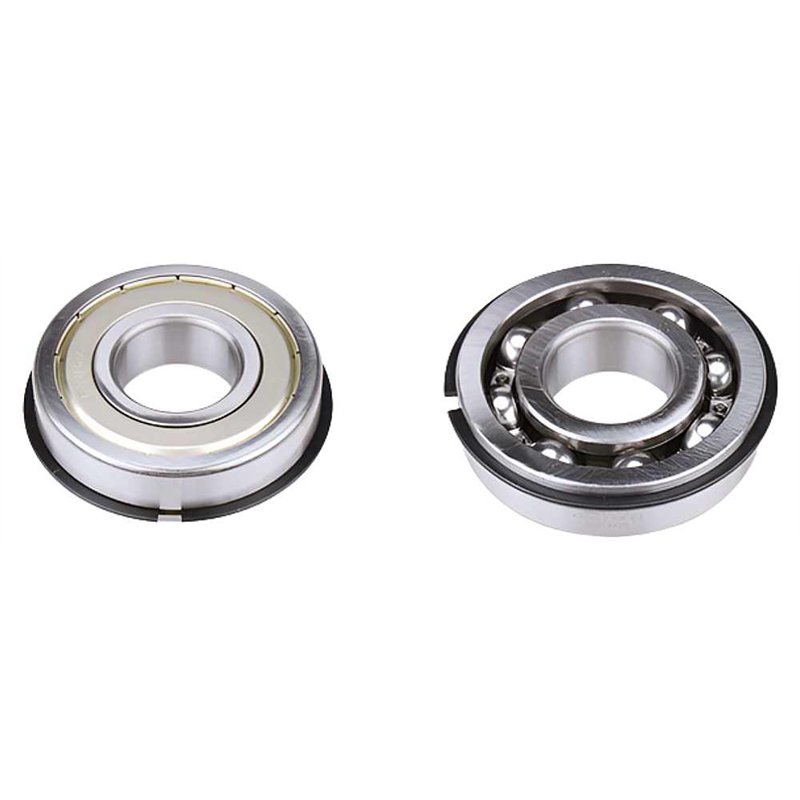

6307.Z NR.C3 RICH Single Row Deep Groove Ball Bearing - 35 x 80 x 21 mm

Technical Specifications:

  • Bearing Type: Single Row Deep Groove Ball Bearing
  • Model Designation: 6307.Z NR.C3
  • Brand: RICH
  • Dimensions: 35 x 80 x 21 mm
  • Inner Diameter (d): 35 mm
  • Outer Diameter (D): 80 mm
  • Width (B): 21 mm
  • Internal Clearance: C3 - greater than normal
  • Groove on outer ring: A groove with a snap ring
  • Sealing: One-sided non-contact shield
  • Weight: 0.481 kg
  • Country of Manufacture: China

The 6307.Z NR.C3 RICH single row deep groove ball bearing, proudly manufactured by RICH in China, is engineered for efficient and reliable performance in various applications. With precise dimensions of 35 mm inner diameter, 80 mm outer diameter, and a width of 21 mm, this bearing ensures an optimal fit. It features C3 internal clearance (greater than normal) and a one-sided non-contact shield for effective protection against contaminants. The outer ring is equipped with a groove and a snap ring, allowing for secure axial positioning within your system. Weighing 0.481 kg, this high-quality component is built to deliver consistent and long-lasting rotational performance.

Key Performance Advantages:

  • Optimized Clearance: C3 internal clearance is ideal for high-speed or high-temperature applications.
  • Secure Axial Positioning: Outer ring groove with snap ring ensures precise and stable mounting.
  • Effective Sealing: One-sided non-contact shield provides reliable protection against contaminants.
  • Precision Engineering: Manufactured to exact dimensions for optimal fit and performance.
  • RICH Quality: Produced in China to high standards, ensuring optimal performance.

Data sheet

Inner Diameter
35
Outer Diameter
80
Width
21
Sealing
Cover On One Side
Category
Single Row Deep Groove Ball Bearing
