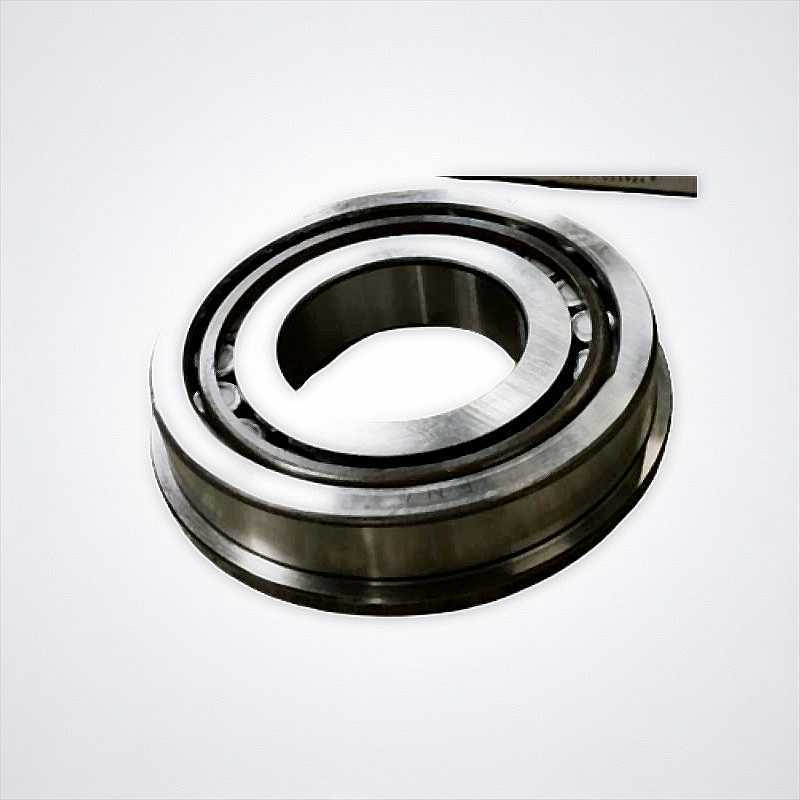

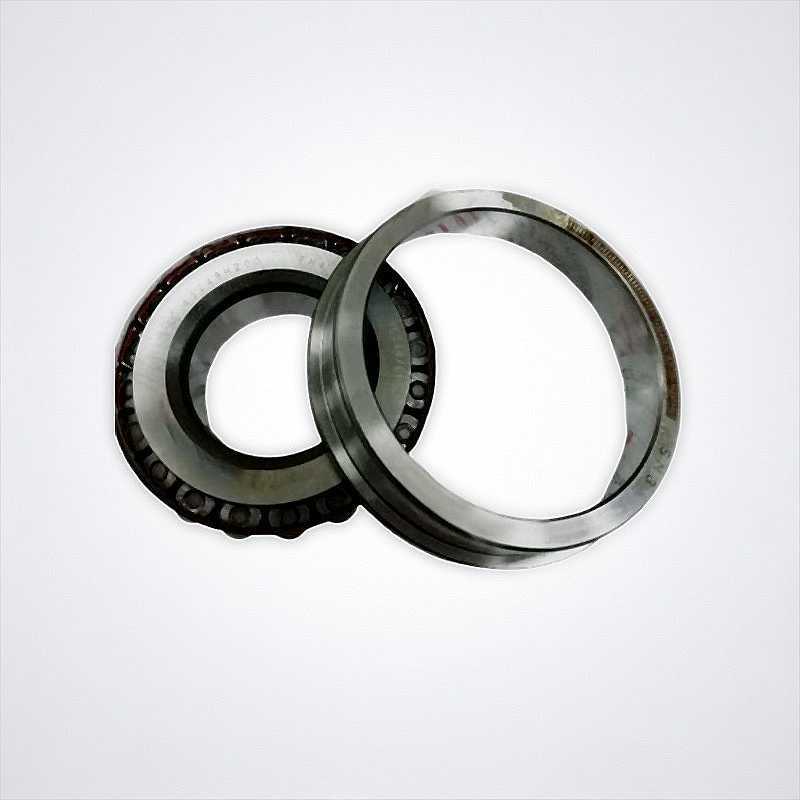

EC41249 R05 RICH Tapered Roller Bearing with Flange - 38 x 78 x 8 mm
OE Reference:
Technical Specifications:
- Catalog Code: EC41249 R05 RICH
- Brand: RICH
- Type: Single row tapered roller bearing with flanged outer ring
- Bore Diameter (d): 38 mm
- Outer Diameter (D): 78 mm
- Flange Diameter (D1): 83.45 mm
- Overall Width (T): 8 mm
- Inner Ring Width (B): 19.3 mm
- Outer Ring Width (C): 16.7 mm
- Weight: 0.448 kg
- Country of Origin: China
Key Performance Advantages:
- Integrated Flange Design: The precision-ground flange on the outer ring allows for secure and accurate axial seating within the transmission housing, preventing bearing migration under heavy thrust loads.
- High Axial Load Support: Designed to handle the complex forces generated by helical gears, the tapered roller geometry provides superior stability and minimizes shaft deflection.
- Premium Material Quality: Manufactured with high-cleanliness steel to withstand the high-temperature environment of modern automotive transmissions, extending the interval between gearbox overhauls.
Transparency Note: This product is manufactured under the RICH brand. The code EC41249 R05 and the listed OE reference are used for identification and compatibility purposes and do not imply affiliation with the original vehicle manufacturer.
