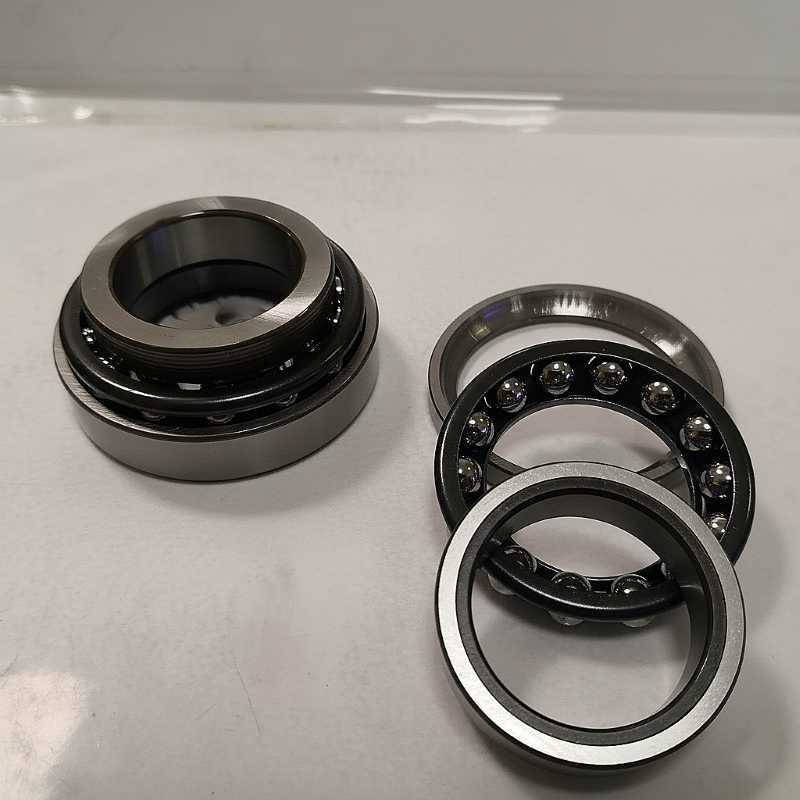

SAC 3055-1 RICH Steering Head Angular Contact Ball Bearing - 30 x 55 x 17 mm
OE Reference / Interchange:
HONDA: 91016KT8-0050
YAMAHA: 933999993200
NTN: SF0649PX1
Technical Specifications:
- Catalog Code: SAC 3055-1 RICH
- Brand: RICH
- Type: Single row angular contact ball bearing
- Feature: Steering bearing
- Bore Diameter (d): 30 mm
- Outer Diameter (D): 55 mm
- Total Width (T): 17 mm
- Inner Ring Width (B): 10.95 mm
- Outer Ring Width (C): 6 mm
- Sealing: None (Open)
- Weight: 0.12 kg
- Country of Origin: China
Key Performance Advantages:
- Precision Steering Response: The angular contact design is optimized to handle combined radial and axial loads simultaneously, ensuring the steering stem remains stable and fluid during cornering and braking maneuvers.
- Specialized Asymmetrical Geometry: With a 10.95 mm inner ring and a slim 6 mm outer ring, this bearing is a direct fit for OE steering head housings on Honda and Yamaha motorcycles, ensuring perfect alignment without modification.
- Enhanced Durability: Manufactured to withstand the constant impact and vibration of road use, the internal raceways are precision-ground to minimize friction and prevent "notchy" steering feel over time.
- Optimized Load Distribution: The contact angle is specifically tuned for steering applications, providing high axial rigidity to maintain the rake and trail geometry of the motorcycle under heavy front-end load.
- High-Grade Material Construction: Built using premium bearing steel to ensure long-term resistance to surface fatigue and wear, even in exposed steering head environments.
Transparency Note: This bearing is manufactured under the RICH brand. The code SAC 3055-1 is used solely for identification and does not imply affiliation with other manufacturers.
