DL 810 RICH 8x14x10 DL810 RICH
search
  • DL 810 RICH 8x14x10 DL810 RICH

DL 810 RICH 8x14x10

RICH
DL810
€1.15
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

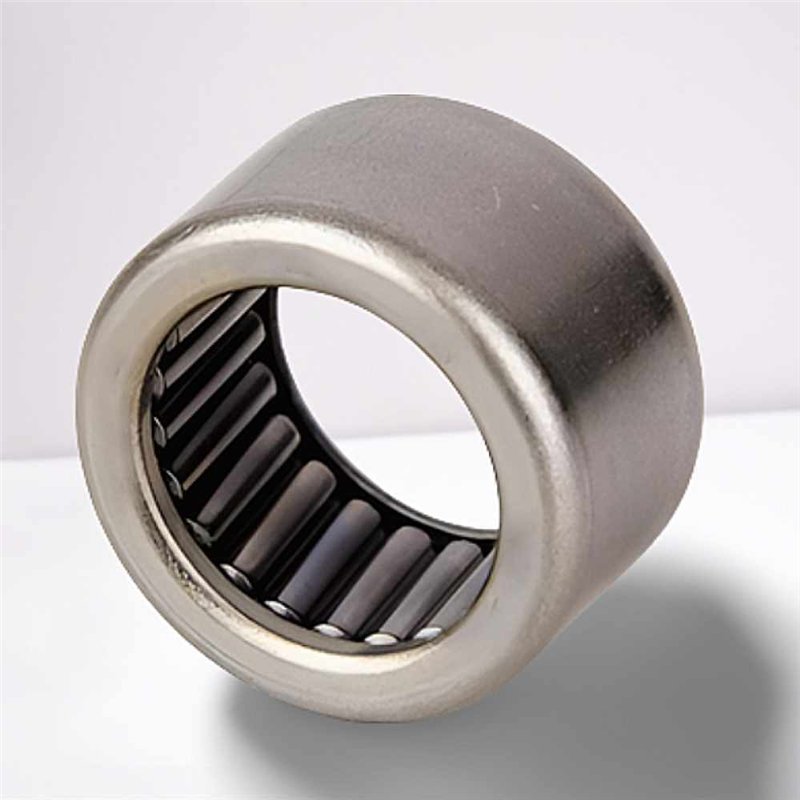

DL 810 RICH Needle Roller Bearing without Inner Ring - 8 x 14 x 10 mm

Technical Specifications:

  • Brand: RICH
  • Type: Needle Roller Bearing without Inner Ring
  • Model: DL 810
  • Dimensions: 8 x 14 x 10 mm
  • Roller Complement Diameter (Fw): 8 mm
  • Outer Diameter (D): 14 mm
  • Width (B): 10 mm
  • Weight: 0.006 kg
  • Cage: None
  • Country of Origin: China

The DL 810 RICH is a robust needle roller bearing without an inner ring, expertly manufactured by RICH to provide maximum load-carrying capability within an exceptionally compact radial space. This unit features precise metric dimensions of 8 x 14 x 10 mm, making it an effective solution for space-constrained, high-stress mechanisms.

This bearing uses a cageless design, which maximizes the density of needle rollers. This construction is engineered for superior static and dynamic load support, making it highly effective in applications characterized by high loads, low speeds, or oscillatory motion. The thin-walled, drawn cup outer ring is designed for secure, interference-fit installation directly into the housing bore. As an inner-ringless bearing, the DL 810 RICH necessitates that the mating shaft surface be appropriately hardened and ground to serve as the inner raceway, ensuring structural integrity and optimal space efficiency.

Key Performance Advantages:

  • Maximum Radial Load Capacity: The cageless design utilizes the highest possible number of needle rollers, providing exceptional load support.
  • Ultra-Low Sectional Height: The drawn cup architecture and the lack of an inner ring minimize the radial space required for installation.
  • Space-Saving and Rigid: Uses the prepared shaft surface as the inner raceway, resulting in a stiff and compact overall assembly.
  • Simple, Robust Mounting: The drawn cup outer ring facilitates straightforward press-fit assembly without requiring additional axial retaining elements.

Data sheet

Inner Diameter
8
Outer Diameter
14
Width
10
Weight
0,006
Clearance
CN (Normal)
Category
Needle Roller Bearing
