NKIA 5901 RICH 12x24x16 NKIA5901 RICH
zoom_out_map
NKIA 5901 RICH 12x24x16 NKIA5901 RICH

NKIA 5901 RICH 12x24x16

The NKIA 5901 RICH is a combined angular contact ball and needle roller bearing (12x24x16 mm) for simultaneous heavy radial and high axial load support.

RICH
NKIA5901
€2.92
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

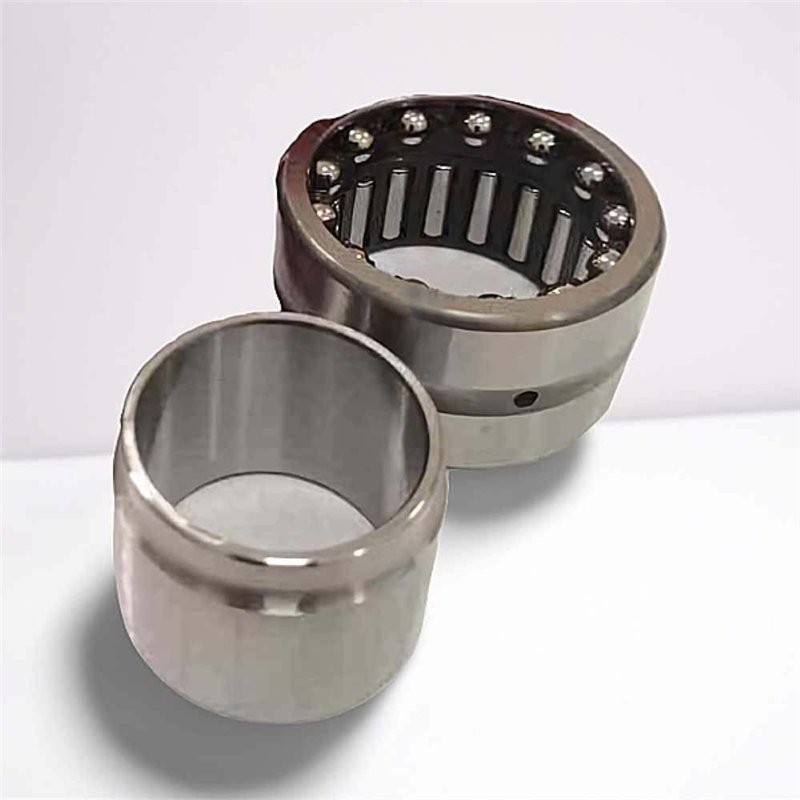

NKIA 5901 RICH Combined Angular Contact Ball and Needle Roller Bearing - 12 x 24 x 16 mm

Technical Specifications:

  • Brand: RICH
  • Type: Combined Angular Contact Ball and Needle Roller Bearing
  • Model: NKIA 5901
  • Dimensions: 12 x 24 x 16 mm
  • Inner Diameter (d): 12 mm
  • Outer Diameter (D): 24 mm
  • Width (B): 16 mm
  • Weight: 0.032 kg
  • Cage Material: Polyamide and Steel
  • Country of Origin: China

The NKIA 5901 RICH is a sophisticated combined bearing that integrates two distinct bearing types into a single unit: a needle roller bearing and an angular contact ball bearing. Manufactured by RICH, this unit features precise metric dimensions of 12 x 24 x 16 mm.

This design is optimized for applications that require highly compact, multi-directional load support in a minimal axial space. The needle roller section efficiently handles heavy radial loads while offering high rigidity in the radial direction. Simultaneously, the angular contact ball section manages high axial loads acting in one direction, ensuring precise shaft guidance. The presence of both steel and polyamide cages reflects the specialized internal construction, allowing each bearing element to perform reliably. The NKIA 5901 RICH is an indispensable component for machine tools, small industrial gearboxes, and precision mechanisms where high load capacity and reduced mounting space are critical requirements.

Key Performance Advantages:

  • Integrated Dual Function: Combines needle roller and angular contact ball bearing elements in one space-saving unit.
  • High Radial and Axial Capacity: Optimized to handle heavy radial loads and high one-directional axial loads simultaneously.
  • Space-Saving Design: Reduces the complexity and axial space required compared to using two separate bearings.
  • High Rigidity: Provides stable and accurate shaft guidance for precision mechanisms.

Data sheet

Inner Diameter
12
Outer Diameter
24
Width
16
Weight
0,032
