WJ 182420 28,57x38,1x31,75 WJ-182420 RICH
zoom_out_map
WJ 182420 28,57x38,1x31,75 WJ-182420 RICH

WJ 182420 28,57x38,1x31,75

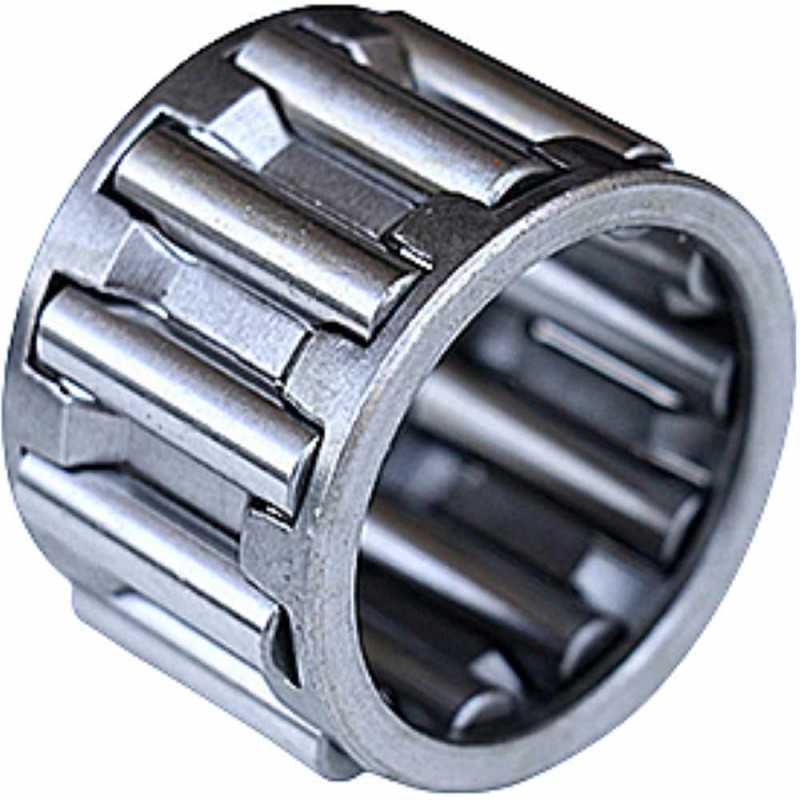

The WJ 182420 RICH Needle Roller and Cage Assembly (ID 28.57 mm, OD 38.1 mm) features a steel cage for high speed and radial load capacity.

RICH
WJ-182420
€2.06
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

WJ 182420 RICH Needle Roller and Cage Assembly - Steel Cage - 28.57 x 38.1 x 31.75 mm

Technical Specifications:

  • Brand: RICH
  • Type: Needle Roller and Cage Assembly
  • Model: WJ 182420
  • Inner Diameter (ID): 28.57 mm
  • Outer Diameter (OD): 38.1 mm
  • Width (W): 31.75 mm
  • Cage Material: Steel
  • Weight: 0.045 kg
  • Country of Origin: China

The WJ 182420 RICH is a robust Needle Roller and Cage Assembly produced by RICH, designed for high-performance applications that require maximum load capacity within minimal radial space. With dimensions of 28.57 x 38.1 x 31.75 mm, this precision component is intended to run directly against a hardened and ground shaft and housing bore, eliminating the need for separate inner and outer rings.

The sturdy steel cage accurately guides the large number of needle rollers, promoting uniform load distribution and stable performance even at high rotational speeds. This compact design is highly effective at providing the highest possible load-carrying capacity relative to its cross-section. The WJ 182420 RICH is an essential choice for gearboxes, automotive transmissions, and industrial machinery where space is restricted and high rigidity is required.

Key Performance Advantages:

  • High Radial Load: Offers maximum load-carrying capacity for a minimal cross-sectional height.
  • Space-Saving Design: Requires minimal radial space by using the shaft and housing as raceways.
  • Steel Cage: Provides high rigidity and durability for stable operation at high speeds.
  • Accurate Guidance: Ensures low friction and smooth performance in continuous or oscillating motion.

Data sheet

Inner Diameter
28,57
Outer Diameter
38,1
Width
31,75
Weight
0,045
Category
Needle Roller And Cage Assembly
