BH-1312 RICH 20,64x28,575x19,05

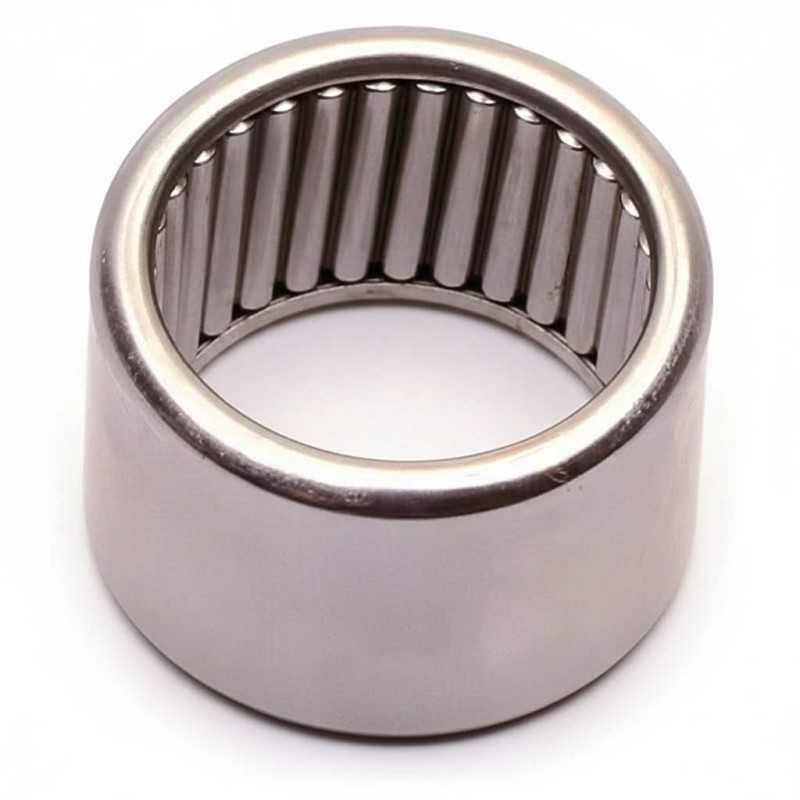

BH-1312 RICH – Needle Roller Bearing – 20.64 x 28.575 x 19.05 mm

Technical Specifications:

• Type: Needle roller bearing without inner ring
• Brand: RICH
• Model Designation: BH-1312
• Inner Diameter (Fw): 20.64 mm
• Outer Diameter (D): 28.575 mm
• Width (C): 19.05 mm
• Cage: None (Full complement design)
• Sealing: None (Open configuration)
• Weight: 0.034 kg
• Country of Origin: China

Performance Characteristics:

• Structural Layout: Drawn cup needle roller design without inner ring for direct shaft integration.
• Load Capacity: Full complement of needle rollers designed for high radial load support in a compact cross-section.
• Internal Geometry: Configuration without a cage assembly to maximize the number of rolling elements.
• Dimensional Format: 20.64 x 28.575 x 19.05 mm technical profile for radial force management in limited spaces.

Transparency Note:

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
