BH-117 RICH 17,463x23,812x11,113

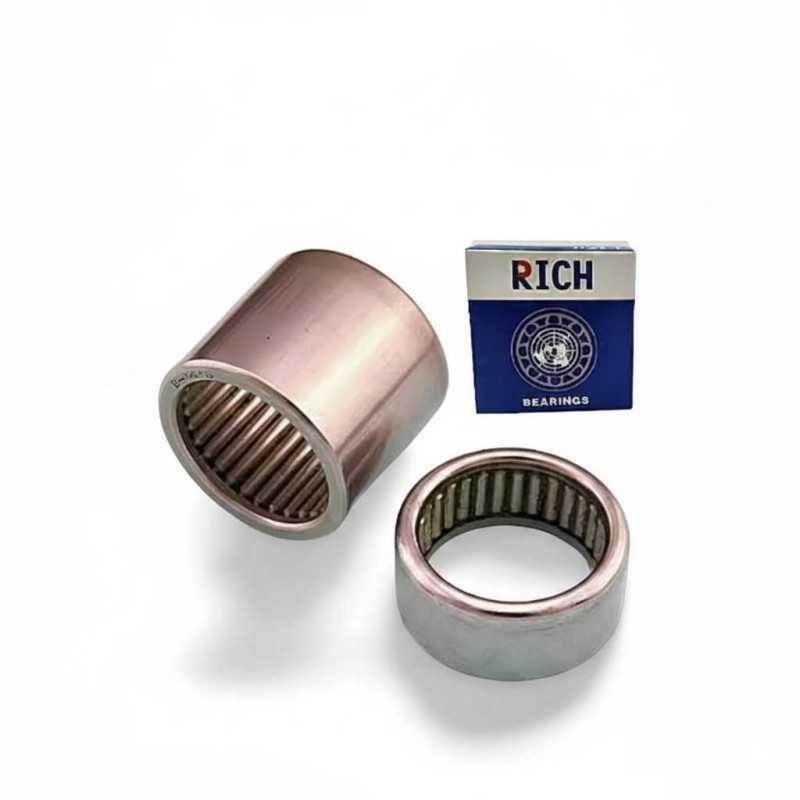

BH-117 RICH – Needle Roller Bearing – 17.463 x 23.812 x 11.113 mm

Technical Specifications:

• Type: Needle roller bearing without inner ring
• Brand: RICH
• Model Designation: BH-117
• Inner Diameter (Fw): 17.463 mm
• Outer Diameter (D): 23.812 mm
• Width (C): 11.113 mm
• Cage: None (Full complement design)
• Sealing: None (Open configuration)
• Weight: 0.019 kg
• Country of Origin: China

Performance Characteristics:

• Structural Layout: Full complement needle roller design engineered for direct shaft integration without an inner ring.
• Load Capacity: Maximum rolling element density designed for elevated radial force resistance in restricted spaces.
• Internal Geometry: Configuration lacking a cage assembly to accommodate the maximum number of needle rollers.
• Dimensional Format: 17.463 x 23.812 x 11.113 mm technical profile for radial load management.

Transparency Note:

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
