K35x42x16 RICH
Rating:
(0)
EUR €
- EUR €
- USD $

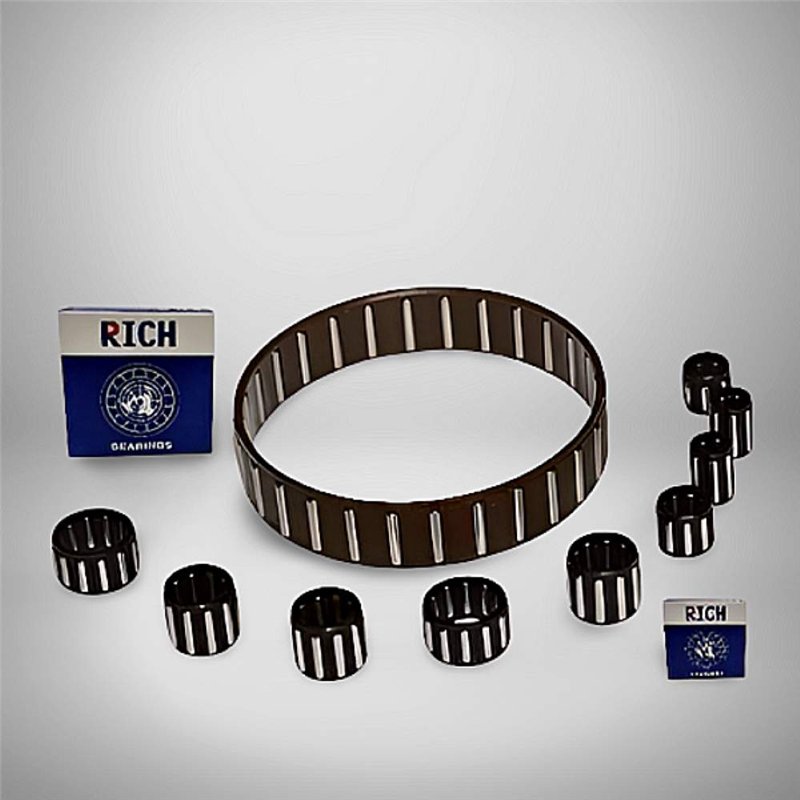

K 35x42x16 RICH Needle Roller and Cage Assembly - 35 x 42 x 16 mm
Technical Specifications:
- Brand: RICH
- Model: K 35x42x16
- Type: Needle Roller and Cage Assembly
- Inner Diameter (d): 35 mm
- Outer Diameter (D): 42 mm
- Width (B): 16 mm
- Cage Material: Steel
- Weight: 0.03 kg
- Country of Origin: China
The K 35x42x16 RICH is a precision-engineered Needle Roller and Cage Assembly manufactured by RICH. This component is designed for applications where the shaft and housing bore can serve as raceways, providing an extremely compact bearing arrangement. Its dimensions are 35 mm inner diameter, 42 mm outer diameter, and 16 mm width.
The assembly consists of a single or double row of needle rollers held precisely by a lightweight yet robust steel cage. This design maximizes the effective contact area for rolling elements, giving the bearing its exceptionally high radial load capacity relative to its small cross-section. The steel cage ensures high strength and stability, making it suitable for high speeds and demanding conditions.
The K 35x42x16 RICH is ideal for installations where radial space is limited but high load support is essential, such as in gearboxes, automotive transmissions, agricultural machinery, and various industrial power tools.
Key Performance Advantages:
- High Radial Load Capacity: Large number of needle rollers supports heavy radial forces.
- Minimal Cross-Section: Excellent for designs with limited radial space.
- Steel Cage: Provides high strength and durability, suitable for high speeds.
- Simplified Design: Operates directly against hardened and ground shaft and housing surfaces.
Data sheet
Inner Diameter
35
Outer Diameter
42
Width
16
Cage
Steel Cage
Category
Needle Roller And Cage Assembly
