HK1312 RICH 13x19x12

RICH
HK1312
€0.43
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

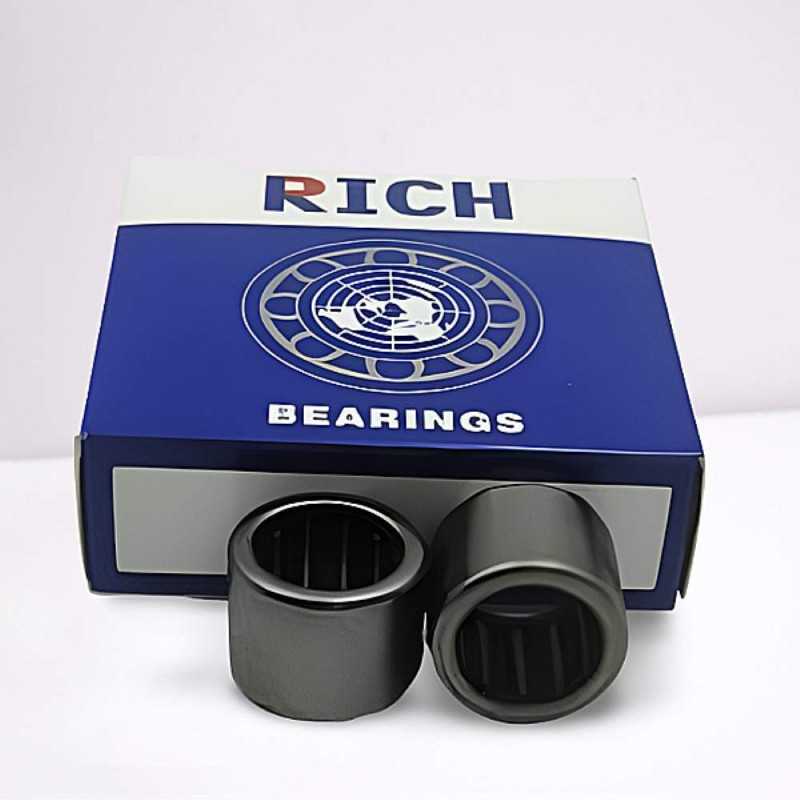

HK1312 RICH Needle Roller Bearing Without Inner Ring - 13 x 19 x 12 mm

The HK1312 RICH is a needle roller bearing without an inner ring, designed for compact applications where a hardened and ground shaft can serve as the inner raceway. This bearing has key dimensions of 13 mm inner diameter, 19 mm outer diameter, and a width of 12 mm. It features a steel cage to precisely guide the needle rollers. This bearing has a dynamic load rating of 6950 N and a static load rating of 7900 N. It weighs 0.014 kg and is made in China.

Key Specifications:

  • Bearing Type: Needle Roller Bearing Without Inner Ring (Drawn Cup Needle Roller Bearing)
  • Model:** HK1312 RICH
  • Inner Diameter (d):** 13 mm
  • Outer Diameter (D):** 19 mm
  • Width (B):** 12 mm
  • Cage Material:** Steel
  • Weight:** 0.014 kg
  • Country of Origin:** China

Key Features:

  • Needle Roller Design:** Provides a high load-carrying capacity with a small radial section height.
  • Without Inner Ring:** Designed to run directly on a hardened and ground shaft, offering a very compact and cost-effective bearing solution.
  • Steel Cage:** Ensures accurate guidance and spacing of the needle rollers for smooth operation.
  • Good Load Capacity:** Suitable for moderate dynamic and static loads.
  • Compact Dimensions:** Ideal for applications with limited space.
  • Manufacturing Origin:** Made in China.

Data sheet

Inner Diameter
13
Outer Diameter
19
Width
12
Weight
0,01
Cage
Steel Cage
Category
Needle Roller Bearing
