DL 2516 RICH 25x33x16
Rating:
(0)
EUR €
- EUR €
- USD $

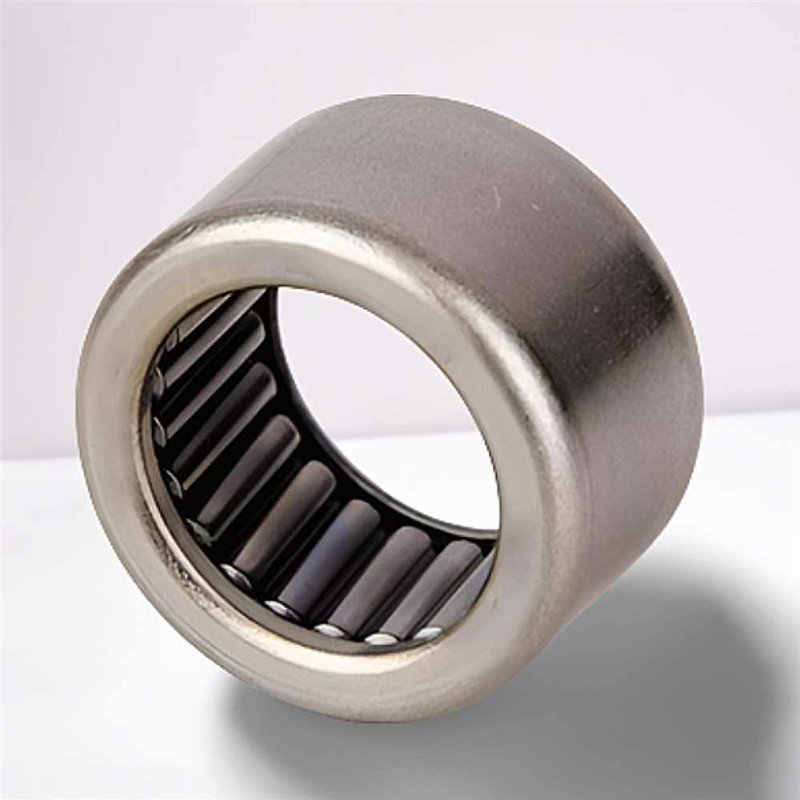

DL 2516 RICH Needle Roller Bearing without Inner Ring - 25 x 33 x 16 mm
Technical Specifications:
- Brand: RICH
- Type: Needle Roller Bearing without Inner Ring (Drawn Cup Type)
- Model: DL 2516
- Design: Full Complement (No Cage)
- Dimensions: 25 x 33 x 16 mm
- Bore Diameter (d): 25 mm
- Outer Diameter (D): 33 mm
- Width (B): 16 mm
- Weight: 0.033 kg
- Country of Origin: China
The DL 2516 RICH is a robust Needle Roller Bearing without Inner Ring featuring a full complement of precision needle rollers. This construction is engineered to deliver the highest possible dynamic load rating within its exceptionally compact radial cross-section. Manufactured by RICH, this bearing has precise metric dimensions of 25 x 33 x 16 mm.
Designed for extreme space efficiency, this drawn cup bearing utilizes the shaft directly as the inner raceway, which must be suitably hardened and ground to achieve optimal performance. The full complement design maximizes the number of rolling elements, making the DL 2516 RICH an excellent choice for low-speed, heavily loaded applications in automotive transmissions, industrial machinery, and gearboxes where radial space is severely limited. It offers excellent rigidity and superior load handling capacity.
Key Performance Advantages:
- Maximum Load Capacity: Full complement design utilizes the entire bearing space for needle rollers.
- Compact Design: Extremely small radial cross-section for maximum space saving.
- Cost-Effective: Eliminates the need for a separate inner ring when the shaft is hardened.
- Increased Width: 16 mm width provides enhanced stability and greater axial load distribution.
Data sheet
Inner Diameter
25
Outer Diameter
33
Width
16
Weight
0,033
Category
Needle Roller Bearing
