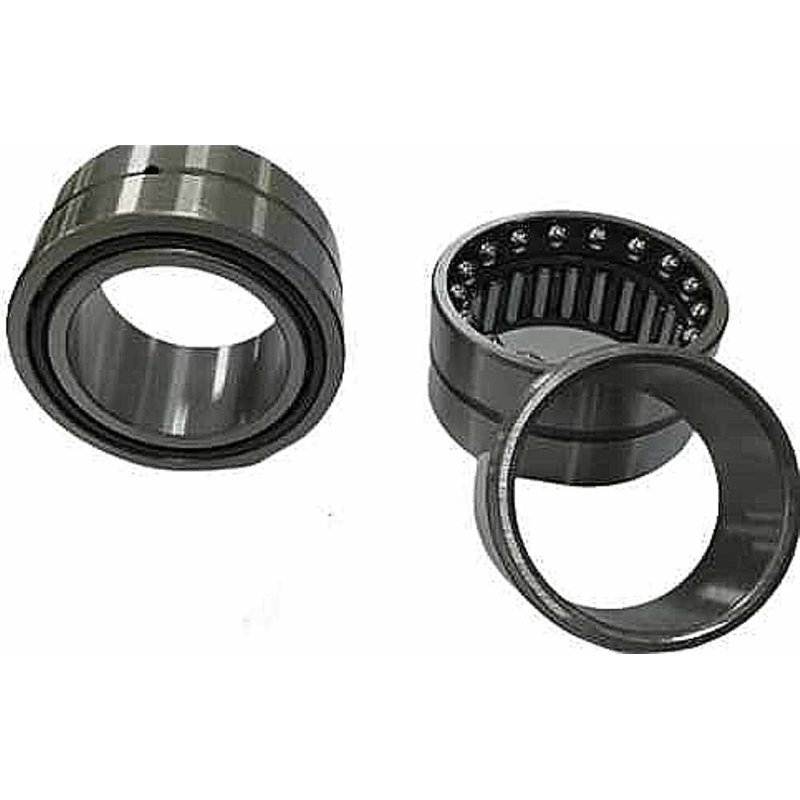

NKIA 5905 RICH Combined Angular Contact Ball and Needle Roller Bearing - 25 x 42 x 23 mm
Technical Specifications:
- Brand: RICH
- Type: Combined Angular Contact Ball and Needle Roller Bearing
- Model: NKIA 5905
- Dimensions: 25 x 42 x 23 mm
- Inner Diameter (d): 25 mm
- Outer Diameter (D): 42 mm
- Width (B): 23 mm
- Weight: 0.135 kg
- Cage Material: Polyamide and Steel
- Country of Origin: China
The NKIA 5905 RICH is a premium combined bearing that integrates a needle roller bearing and an angular contact ball bearing into a single, high-performance unit. Manufactured by RICH, this unit features precise metric dimensions of 25 x 42 x 23 mm.
This design is specifically tailored for applications requiring highly compact, multi-directional load support. The needle roller section provides exceptional capacity for heavy radial loads and ensures high radial rigidity. Concurrently, the angular contact ball section efficiently manages high axial loads acting in a single direction, which contributes to precise and stable shaft guidance. The specialized internal construction uses both polyamide and steel cages, allowing each bearing element to perform optimally and ensuring long-term reliability. The NKIA 5905 RICH is an ideal solution for machine tools, industrial gearboxes, and precision equipment where high load capacity and minimal axial space are crucial.
Key Performance Advantages:
- Integrated Dual Function: Combines needle roller and angular contact ball elements in one space-efficient unit.
- High Radial and Axial Capacity: Optimized to handle heavy radial loads and high one-directional axial loads simultaneously.
- Space-Saving Design: Minimizes the axial space required compared to using two separate bearings.
- High Rigidity: Provides stable and accurate shaft guidance for precision applications.
Data sheet
Inner Diameter
25
Outer Diameter
42
Width
23
Weight
0,135
Cage
Steel Cage
